4 Report Formatting

flowchart LR
Fig[Figures] --> Lay[Layout<br>Size]
Tab[HTML Tables]
Place[Placement] --> places[Margin<br>Tabs<br>Expand/Hide<br>Mixing Tables and Graphics]
rept[qreport] --> rhf[Report Writing<br>Helper Functions]
OF[Overall Format] --> ofs[HTML]
OF --> ltx[LaTeX] --> pdf[pdf]
OF --> mfd[Multi-Format<br>Reports]
MD[Metadata<br>Report<br>Annotations] --> mds[Variable Labels<br>and Units]

A state-of-the-art way to make reproducible reports is to use a statistical computing language such as R and its knitr package in conjunction with either RMarkdown or Quarto, with the latter likely to replace the former. Both of the report-making systems allow one to produce reports in a variety of formats including html, pdf, and Word. Html is recommended because pages can be automatically resized to allow optimum viewing on devices of most sizes, and because html allows for interactive graphics and other interactive components. Pdf is produced by converting RMarkdown or Quarto-produced markdown elements to $\LaTeX$.

Report formatting is very much enhanced by using variable attributes such as labels and units of measurement that are not considered in base R. Methods for better annotating output using labels and units are given below.

This document can serve as a template for using R with Quarto; one can see the raw script by clicking on Code at the top right of the report. When one has only one output format target, things are fairly straightforward except some situations where mixed formats are rendered in the same code chunk. Click below for details.

Notes on Printing Mixed Tabular Output in Chunks

With Hmisc package version 4.8 and later and rms package 6.5-0 and later, rendering in html no longer requires results='asis' in chunk headers, and a chunk can mix plain text and html without any problems. The following applies to earlier versions.

To make use of specialized functions that produce html or $\LaTeX$ markup, one often has to put results='asis' in the code chunk header to keep the system from disturbing the generated html or $\LaTeX$ markup so that it will be typeset correctly in the final document. This process works smoothly but creates one complication: if you print an object that produces plain text in the same code chunk, the system will try to typeset it in html or $\LaTeX$. To prevent this from happening you either need to split the chunks into multiple chunks (some with results='asis' and some not) or you need to make it clear that parts of the output are to be typeset verbatim. To do that a simple function pr can sense if results='asis' is in effect for the current chunk. If so, the object is surrounded by the markdown verbatim indicator—three consecutive back ticks. If not the object is left alone. pr is defined in the marksupSpecs$markdown$pr object, so you can bring it to your session by copying into a local function pr as shown below, which has a chunk option results='asis' to show that verbatim output appears anyway. If the argument obj to pr is a data frame or data table, variables will be rounded to the value given in the argument dec (default dec=3) before printing. If you specify inline=x the object x is printed with cat() instead of print(). inline is more for printing character strings.

An example of something that may not render correctly due to results='asis' being in the chunk header (needed for html(...)):

options(prType='html')
f <- ols(y ~ rcs(x1, 5))
f    # prints model summary in html format
m <- matrix((1:10)/3, ncol=2)
m
# use pr(obj=m) to fix

Here are examples of pr usage.

require(Hmisc)
pr <- markupSpecs$markdown$pr
x <- (1:5)/7
pr('x:', x)


x:

[1] 0.1428571 0.2857143 0.4285714 0.5714286 0.7142857

pr(obj=x)

[1] 0.1428571 0.2857143 0.4285714 0.5714286 0.7142857

pr(inline=paste(round(x,3), collapse=', '))


0.143, 0.286, 0.429, 0.571, 0.714

Instead of working to keep certain outputs verbatim you can use knitr::kable() to convert verbatim output to markdown. Also see the yaml df-print html option, for which you may want to set df-print: kable.

knitr/Quarto will by default print data frames and other simple tables using html. Even though this is seldom needed, you can make knitr use plain text printing by putting this code at the top of the report to redefine the default knitr printing function.

knit_print <- knitr::normal_print

4.1 `Quarto` Syntax for Figures

One can specify sizes, layouts, captions, and more using Quarto markup. Captions are ignored unless a figure is given a label. Figure labels must begin with fig-. The figure can be cross-referenced elsewhere in the document using for example See \@fig-scatterplot. Figure will be placed in front of the figure number automatically. Here is example syntax.

This explains how to cross-reference subfigures.

```{r}
#| label: fig-myplot
#| fig-cap: “An example caption (use one long line for caption)”
#| fig-height: 3
#| fig-width: 4
plot(1:7, abs(-3 : 3))
```

If the code produces multiple plots you can combine them into one with a single overall caption and include subcaptions for the individual panels:

```{r}
#| label: fig-myplot
#| fig-cap: “Overall caption …”
#| fig-height: 3
#| fig-width: 4
#| layout-ncol: 2
#| fig-subcap:
#| - “Subcaption for panel (a)”
#| - “Subcaption for panel (b)”
plot(1:7, abs(-3 : 3))
hist(x)
```

To include an existing image while making use of Quarto for sizing and captioning etc. use this example.

```{r out.width=“600px”}
#| label: fig-mylabel
#| fig-cap: “…”
knitr::include_graphics(‘my.png’)
```

If you don’t need to caption or cross-reference the figure use e.g.

Other examples are in the next section.

The qreport package has helper functions for building a table of figures. To use those, put addCap() or addCap(scap="short caption for figure") as the first line of code in the chunk. The full caption is taken as the fig-cap: markup. If you don’t specify scap too addCap the short caption will be taken as the fig-scap: markup, or if that is missing, the full caption. At the end of the report you can print the table of figures using the following syntax (but surround the last line with back ticks).

# Figures

r printCap()

For chunks having #| label: fig- you can automatically have knitr call addCap at the start of a chunk, extracting the needed information, if you run the qreport function hookaddcap() in a chunk before the first chunk that produced a graph. This procedure is used through this book. addCap makes use of fig-scap: for short captions.

4.2 `Quarto` Built-in Syntax for Enhancing R Output

Helper functions described below allow one to enhance graphical and tabular R output by taking advantage of Quarto formatting features. These functions allow one to produce different formats within one code chunk, e.g., a plot in the margin and a table in a collapsible note appearing after the code chunk. But if you need only one output format within a chunk you can make use of built-in syntax as described here. The yaml-like syntax also allows you to specify heights and widths for figures, plus multi-figure layouts.

Here is some example code with all the markup shown.

```{r}
#| column: margin
#| fig-height: 1
#| fig-width: 3
par(mar=c(2, 2, 0, 0), mgp=c(2, .5, 0))
set.seed(1)
x <- rnorm(1000)
hist(x, nclass=40, main=’’)
x[1:3] # ordinary output stays put
knitr::kable(x[1:3]) # html output put in margin
hist(x, main=’’)
```

This results follow.

par(mar=c(2, 2, 0, 0), mgp=c(2, .5, 0))
set.seed(1)
x <- rnorm(1000)
hist(x, nclass=40, main='')

x[1:3]               # ordinary output stays put

[1] -0.6264538  0.1836433 -0.8356286

knitr::kable(x[1:3]) # html output put in margin

x
-0.6264538
0.1836433
-0.8356286

hist(x, main='')

Here are a few markups for figure layout inside R chunks.

Wide page (takes over the margins) and put multiple plots in 1 row:

#| column: screen-inset
#| layout-nrow: 1

What I use the most: a wide column that just expands a little into the right margin, especially appropriate when the table of contents is on the right:

#| column: screen-right

When plotting 3 figures put the first 2 in one row and the third in the second row and make it wide.

#| layout: [[1,1], [1]]

Make the top left panel be wider than the top right one.

#| layout: [[70,30], [100]]

Top left and top right panels have equal widths but devote 0.1 of the total width to an empty region between the two top panels.

#| layout: [[45, -10, 45], [100]]

See here for details about figure specifications inside code chunks.

You can put some .aside information to the right of R output.

Tab sets and collapsible text are frequently helpful in report writing. Tricks can be used to flip all tabs with a single button. For example, if a series of analyses were done in parallel using both parametric and nonparametric methods, one can use CSS so that when clicking a Nonparametric tab all the nonparametric analysis results will show throughout the document.

4.3 `Quarto` Report Writing Helper Functions

Helper functions are defined when you activate the qreport package. You can get help on these functions by the usual way of typing ?functionname at the console. Several of the functions construct Quarto callouts which are fenced-off sections of markup that trigger special formatting, especially when producing html. The special formatting includes collapsible sections and marginal notes. Here is a summary of some of the qreport (plus a few from Hmisc) helper functions. For most of these functions you have to put results='asis' in the chunk header.

Function	Purpose
`dataChk`	run a series of logical expressions for checking data consistency, put results in separate tabs using `maketabs`, and optionally create two summary tabs
`dataOverview`	runs a data overview report
`missChk`	creates a series of analyses of the extent and patterns of missing values in a data table or data frame, and puts graphical summaries in tabs
`hookaddcap`	makes `knitr` automatically extract figure labels, captions, short captions for use in list of figures
`htmlList`	print a named `list` using the names as headers
`kabl`	front-end to `knitr::kable` and `kables`. If you run `kabl` on more than one object it will automatically call `kables`.
`makecallout`	generic Quarto callout maker used by `makecnote`, `makecolmarg`
`makecnote`	print objects or run code and place output in an initially collapsed callout note
`makecolmarg`	print objects or run code and place output in a marginal note
`maketabs`	print objects or run code placing output in separate tabs
`makemermaid`	makes a `mermaid` diagram with R variable values included in the diagram
`makegraphviz`	similar to `makemermaid` but using `graphviz`
`varType`	classify variables in a data table/frame or a vector as continuous, discrete, or non-numeric non-discrete
`conVars`	use `varType` to extract list of continuous variables
`disVars`	use `varType` to extract list of discrete variables
`vClus`	run `Hmisc::varclus` on a dataset after reducing it

The input to maketabs, as will be demonstrated later, may be a named list, or more commonly, a series of formulas whose right-hand sides are executed and the result of each formula is placed in a separate tab. The left side of the formula becomes the tab label. For makecolmarg there should be no left side of the formula as marginal notes are not labeled. For the named list option the list names become the tab names. Examples of both approaches appear later in this report. In formulas, a left side label must be enclosed in back ticks and not quotes if it is a multi-word string. A wide argument is used to expand the width of the output outside the usual margins. An initblank argument creates a first tab that is empty. This allows one to show nothing until one of the other tabs is clicked. Alternately you can specify as the first formula ` ` ~ ` `.

See this for another way to generate tabs. See this for more information about dynamic generation of markdown text and knitr components with R.

The two approaches to using maketabs also apply to makecnote and makecolmarg. Examples of the “print an object and place it inside a callout” are given later in the report for makecnote and makecolmarg. Here is an example of the more general formula method that can render any object, including html widgets as produced by plotly graphics. An interactive plotly graphic appears at the bottom of the plots in the right margin. You can single click on elements in the legend to turn them off and on, and double click within the legend to restore to default values.

require(Hmisc)
require(qreport)
options(plotlyauto=TRUE)  # makes Hmisc use plotly's auto size option
                          # rather than computing height, width
set.seed(1)
x <- round(rnorm(100, 100, 15))
makecolmarg(~ table(x) + raw + hist(x) + plot(ecdf(x)) + histboxp(x=x))

x
 67  70  73  77  78  79  81  82  83  84  86  87  88  89  90  91  92  93  94  95
  1   1   1   1   1   1   2   1   1   1   1   1   1   3   1   6   1   3   3   2
 96  98  99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 116 117
  1   6   5   3   2   1   2   2   4   5   2   2   6   2   3   3   1   2   1   3
118 120 121 122 123 124 130 133 136
  2   1   1   1   1   2   1   1   1

# or try makecnote(`makecnote example` ~ kabl(table(x)) + hist(x) + ...
# Avoid raw by using kabl(table(x)) instead of table(x)

Adding + raw to a formula in makecnote, makecolmarg, or maketabs forces printed results to be treated as raw verbatim R output.

makecallout is a general Quarto callout maker that implements different combinations of the following: list or formula, print or run code, defer executing and only produce the code to execute vs. running the code now, and close the callout or leave it open for more calls.

qreport also has helper functions for interactively accessing information to help in report and analysis building:

Function	Purpose
`htmlView`	view html-converted objects in `RStudio` `View` pane
`htmlViewx`	view html-converted objects in external browser

However the automatic viewing of html objects in the RStudio Viewer will satisfy most needs.

4.4 Multi-Output Format Reports

To allow one report to be used to render multiple output formats, especially html and pdf, it is helpful to be able to sense which output format is currently in play, and to use different functions or options to render output explicitly for the current format. Here is how to create variables that can be referenced simply in code throughout the report, and to invoke the plotly graphics package if output is in html to allow interactivity. A small function ggp is defined so that if you run any ggplot2 output through it, the result will be automatically converted to plotly using the ggplotly function, otherwise it is left at standard static ggplot2 output if html is not the output target.

See this for examples of articles rendered in both html and PDF from the same script.

outfmt <- if(knitr::is_html_output ()) 'html'  else 'pdf'
markup <- if(knitr::is_latex_output()) 'latex' else 'html'
ishtml <- outfmt == 'html'
if(ishtml) require(plotly)
ggp <- if(ishtml) ggplotlyr else function(ggobject, ...) ggobject
# See below for more about ggplotlyr (a front end for ggplotly that can
# correct a formatting issue with hover text)

Quarto has a excellent facility for conditionally including document sections depending on the currently chosen output format.

Special Considerations For $\LaTeX$/PDF

The Hmisc, rms, and rmsb packages have a good deal of support for creating $\LaTeX$ output in addition to html. They require some special $\LaTeX$ packages to be accessed. In addition, if using any of Quarto’s nice features for making marginal notes, there is another $\LaTeX$ package to attach. Below you’ll find what needs to be added to the yaml prologue at the top of your script if using Quarto. You have to modify pdf-engine to suit your needs. I use luatex because it handles special unicode characters. In the future (approximately July 2022) a bug in Pandoc will be fixed and you can put links-as-notes: true in the yaml header instead of redefining href and linking in hyperref.

format:
  html:
    self-contained: true
    . . .
  pdf:
    pdf-engine: lualatex
    toc: false
    number-sections: true
    number-depth: 2
    top-level-division: section
    reference-location: document
    listings: false
    header-includes:
      \usepackage{marginnote, here, relsize, needspace, setspace, hyperref}
      \renewcommand{\href}[2]{#2\footnote{\url{#1}}}

The href redefinition above turns URLs into footnotes if running $\LaTeX$.

There is one output element provided by Quarto that will not render correctly to $\LaTeX$: a marginal note using the markup .column-margin. To automatically use an alternate in-body format, define a function that can be used for both typesetting formats.

mNote <- if(ishtml) '.column-margin'
  else
                    '.callout-note appearance="minimal"'

Then use r mNote enclosed in back ticks in place of the .column-margin callout for generality.

Special Considerations For Microsoft Word

Quarto and its workhorse Pandoc now are quite good at creating Word .docx files, even allowing $\LaTeX$ math expressions to render well and be editable in Word. Missing is the ability to handle marginal notes including .asides.

When collaborating with a Word user by sending her a .docx file whenever a report is updated, it is hard but necessary to discourage her from editing the docx file instead of communicating changes back to you to make in the primary .qmd file. But often the collaborator is using parts of your report to build another Word document. In that case it is important for the collaborator to be able to see what changed since the last report. The minimal-effort way to do this is to save the last version of the .docx file and send both the last and current versions to the collaborator. She can then compare the two versions in Word to see exactly what has changed.

Saving Graphics Images

Even when producing only html, one may wish to save individual graphics for manuscript writing. For non-interactive graphics you can right click on the image and download the .png file. For interactive plots, plotly shows a “take a snapshot” icon when you hover over the image. Clicking this icon will produce a static .png snapshot of the graph. Some graphs are not appropriate for static documents, and the variables created in the code above can be checked so that, for example, an alternative graph can be produced when making a .pdf file. But in other cases one just produces an additional static plot that is not shown in the html report. See the margin note near Figure 15.18 for an example.

Using Hmisc Formatting for Variable Labels in Tables

As done with various Hmisc and rms package functions, one can capitalize on Hmisc’s special formatting of variable labels and units when constructing tables in $\LaTeX$ or html. The basic constructs are shown in the code below.

# Retrieve a set of markup functions depending on typesetting format
# See below for definition of ishtml
specs    <- markupSpecs[[if(ishtml) 'html' else 'latex']]
# Hmisc markupSpecs functions create plain text, html, latex,
# markdown, or plotmath code
varlabel <- specs$varlabel  # retrieve an individual function
# Format text describing variable named x
# hfill=TRUE typesets units to be right-justified in label
# Use the following character string as a row label
# Default specifies the string to use if there is no label
# (usually taken as the variable name)
varlabel(label(x, default='x'), units(x), hfill=TRUE)

For plotting and sometimes for html, the Hmisc hlab function is used. It makes label and units lookups easy. For plain text formatting of labels/units, the Hmisc vlab function is easy to use.

4.5 HTML Tables

Nicely formatted tables can be created in multiple ways:

using customized code that directly writes html markup
using customized code that directly writes $\LaTeX$ markup
using customized code that writes markdown markup (e.g., “pipe” tables)
hand coding markdown (usually pipe tables)

The latter two provide less flexibility but have the advantage of being automatically converted to html or $\LaTeX$ depending on your destination format.

Here is an example of a hand coded markdown pipe table. Note (1) the second line of the markup indicates that the first column is to be left-justified and the second column right-justified, and (2) you can include computed values from R expressions. On the caption line we specify that the first column occupies 2/3 of the width. We could have specified tbl-colwidths="[67,33]" to get the same result.

| This Column | That Column |
|:—–|—–:|
| cat | dog |
| `r pi` | `r 2+3` |
: Table caption {tbl-colwidths=“[2,1]”}

The result is

Table caption
This Column	That Column
cat	dog
3.1415927	5

There is an automatic feature of html that makes it especially attractive as a destination format: If a cell contains a long string of characters, those strings will be line-wrapped appropriately, with the line length depending on the width of the display device.

The knitr package kable function provides an easy way to produce html tables from data tables/frames and matrices, and knitr::kables allows one to put several tables together. The qreport package kabl function combines the features of kable and kables. The kableExtra package allows you to greatly extend what kable can do.

There are many R packages and functions for making advanced html tables. See for example the Table 1 tab in Chapter 9. This table was produced by the Hmisc package summaryM function, which used the htmlTable function in the htmlTable package. Other packages to consider are gt (see Section 4.9) and its uncredited predecessor tangram, and packages discussed here.

The central guide for basic table making in Quarto is here.

4.5.1 `gt` Package

The gt package is to tables as ggplot2 is to graphs. gt provides a wide variety of formatting opportunities allowing one to flexibly create fairly complex tables that can contain interactive elements. Like ggplot2, table elements (column headings, rows, columns, or row-column combinations) are specified by adding layers to an accumulating gt object using a pipe operator (“pass along to”) such as |>. Unlike ggplot2, gt can translate markdown elements to html on-the-fly. This allows you to do things like including bullet lists and small tables inside gt table cells.

See for example the Categorical tab in Section 2.9 for an example where small markdown tables appear inside a larger gt table.

Here is an example that includes many of the gt features that are commonly needed. See Section 4.9 for how to put graphics in gt table cells, and see Section 11.3 for another gt example.

require(gt)
# Define a data frame that forms the table rows and columns
set.seed(1)
d <- data.frame(
  Item              = c(runif(3), NA),
  chi               = rchisq(4, 3),
  '$$X_2$$'         = rnorm(4),
  Markdown          = c('* part 1\n* part 2\n* part 3', '', '', '**xxx**'),
  Y                 = c('$$\\alpha_{3}^{4}$$', rep('', 3)),
  check.names = FALSE)   # allows illegal R column names

gt(d)                                                |>
  tab_header(title=md('**Main Title $\\beta_3$ Using `gt`**'),
             subtitle='Some Subtitle')               |>
  tab_options(table.width=pct(65))                   |>
  tab_spanner('Numeric Variables', columns=1:3)      |>
  tab_spanner('Non-Numeric Variables',
              columns=c(Markdown, Y))                |>
  tab_row_group(md('**After** Intervention'),  rows=3:4) |>
  tab_row_group('Before Intervention', rows=1:2)     |>
  tab_options(row_group.font.weight='bold',
              row_group.background.color='lightgray')|>
  sub_missing(missing_text='')                       |>
  fmt_number(columns=c(Item, '$$X_2$$'), decimals=2) |>
  cols_label(Y   ~ html('Velocity<br>of Thing'),
             chi ~ md('$$\\chi^2_{3}$$'))            |>
  cols_width(Markdown ~ px(160))                     |>
  cols_align(align='center', columns=Y)              |>
  fmt_markdown(columns=Markdown, rows=1)             |>
  tab_style(style=cell_text(size='small'),
            locations=cells_body(columns=Markdown))  |>
  tab_style(style=cell_text(color='blue', align='right'),
            locations=cells_column_labels(columns='$$X_2$$')) |>
  tab_source_note(md('_Note_: There is a bug in `tab_row_group` in `gt` version 0.9.0 causing the row group labels to appear in the reverse order in which they were named.  This is why the `tab_row_group` were reversed in the code.  The problem is reported [here](https://github.com/rstudio/gt/issues/717).'))    |>
  tab_footnote(md('Carefully calculated based on _bad_ assumptions'),
               locations=cells_body(columns=Item,
                                    rows=Item==min(Item, na.rm=TRUE)))

1: md() allows you to specify markdown syntax
2: Make the table have 65% of the report body width
3: Instead of printing NA for missing values of Item, print blank
4: Two digits to the right of the decimal point for two columns
5: Rename the Y column and stack two lines for the label, marking this as html; rename chi using markdown math notation
6: Make the Markdown column 160 pixels wide
7: Transform markdown text in column named Markdown (quotes not needed in gt) but only for the first row. The fourth row rendered ** literally instead of using bold face.
8: Make column Markdown have a small font
9: Make the X_2 column label be blue and right-aligned. Right alignment did not work for math mode.
10: Footnote automatically placed on the row where Item has its lowest value

Numeric Variables			Non-Numeric Variables
Main Title $\beta_3$ Using `gt`
Some Subtitle
Item	$$\chi^2_{3}$$	$$X_2$$	Markdown	Velocity of Thing
Before Intervention
¹ 0.27	5.543782	0.74	part 1 part 2 part 3	$$\alpha_{3}^{4}$$
0.37	5.354397	0.58
After Intervention
0.57	2.915247	−0.31
	5.053191	1.51	xxx
Note: There is a bug in `tab_row_group` in `gt` version 0.9.0 causing the row group labels to appear in the reverse order in which they were named. This is why the `tab_row_group` were reversed in the code. The problem is reported here.
¹ Carefully calculated based on bad assumptions

To remove certain table elements use these examples.

gt(d) |> tab_options(column_labels.hidden=TRUE)                          |>
         tab_options(table_body.hlines.width=0, table.border.top.width=0)|>
         cols_hide(columns=c(X1,X2))
# or
g <- ...
g |> cols_hide(columns=Pvalue)

1: remove column headings
2: remove top line
3: remove columns named X1 and X2
4: some operation that creates a gt object, e.g., print(describe(mydata, 'continuous'))
5: remove a column and finally render the table

4.6 CSS

When producing reports in html, you can create custom html styles that quarto will use. These styles are defined using HTML5’s CSS (cascading style sheets). An example .css file is at hbiostat.org/rflow/h.css, and your report may gain access to such a .css file by including a line like css: h.css in the top-level quarto yaml header under the html: section.

Two of the styles defined by defined by h.css are smaller and smaller2. smaller will shrink the font size of a block of text (even one containing code and R output, but it does not apply to tables) to 80% of its original size. smaller2 will make it 64% of the original size. To invoke these styles we use quarto “divs” as follows:

::: {.smaller2}
This is text that will appear smaller ...

:::

Here is an example using smaller2.

This is text that will appear smaller. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same.

X	Y
2.3	4.5
2.2	3.3

x <- pi
x

[1] 3.141593

Another style in h.css is quoteit which is useful for including quotations. The text is italicized, dark blue, 80% of regular size, and has 10% left and right margins. Here is an example.

::: {.quoteit}
Some eloquent quote appears here.  The author of the quote is assumed to know what they are talking about, and seem to be able to express themselves.
:::

Some eloquent quote appears here. The author of the quote is assumed to know what they are talking about, and seem to be able to express themselves.

As discussed here you can use Quarto's markdown syntax to style text with CSS, e.g., the color is [red]{style="color: red;"}. This can be handy when you change a report and you want someone else to see what’s changed. Suppose that changed text is to appear in blue. Define a “mark changed text” character variable Ch as follows.

Unfortunately, these HTML colors will not render in Word.

Ch <- '{style="color:blue;"}'

Then you can type “[This text]`r Ch` has changed” to render the following: This text has changed. You can also define a helper function to be generic if you want to use more than one color:

# substitute keeps you from having to quote a word
col <- function(co) {
  co <- as.character(substitute(co))
  paste0('{style="color:', co, ';"}')
}

Try it: [This]`r col(red)` is red and [This other thing]`r col(blue)` is blue.

which renders:

This is red and this other thing is blue if rendering to HTML.

4.7 Advanced Tables That Render to Both HTML and Word

Although there are many advanced table making tools in R for producing HTML, most of these will not properly render to Word much of the time. Functions that directly write HTML markup such as those in the Hmisc and htmlTable packages produce HTML that Quarto and pandoc know how to faithfully render to Word. An example multi-format output script is here, with HTML output and .docx output.

4.8 Diagrams

Quarto builds in two diagramming languages: mermaid and graphviz. Section 8.1 has detailed examples using mermaid, which uses a simpler format than graphviz. graphviz allows for more complex diagrams exemplified here and also provides more control. graphviz nodes can include HTML tables, and you can even have arrows drawn between table cells or between a table cells and other non-table nodes. Here is an example, taken from this excellent post. Connections between diagram elements are made possible by assigning port identifiers to elements.

The chunk header refers to dot which is a primary module of graphviz, for directed graphs.

digraph {
  graph [pad="0.5", nodesep="0.5", ranksep="2"]
  //  splines=ortho for square connections
  node  [shape=plain]
  rankdir=LR;

Foo [label=<
<table border="0" cellborder="0" cellspacing="0">
  <tr><td><b><i>InputFoo</i></b></td><td><font color="blue">two</font> </td>   </tr><HR/>
  <tr>  <td port="1">one</td><td> two </td></tr>
  <tr>  <td port="2">two</td><td> two </td></tr>
  <tr>  <td port="3">three</td><td> two </td></tr>
  <tr>  <td port="4">four</td><td> two </td></tr>
  <tr>  <td port="5">five</td><td port="a"> two </td></tr>
  <tr>  <td port="6">six</td><td port="b"> two </td></tr>
</table>>];
Bar [label=<This and that<br/><font face="courier" color="darkblue">and that and <b>that</b></font>>];

Foo:3:w -> Foo:2:w;
// node name:port:direction (n,ne,e,se,s,sw,w,nw,c,_)
// c=center within node, _=use appropriate node side
// See graphviz.org/docs/attr-types/portPos
Foo:3:w -> Foo:6:w;
Foo:6:w -> Foo:1:w;
Foo:1:w -> Foo:a:e;
Foo:b:e -> Bar;
}
```

The qreport makegraphviz function allows variable insertions into graphviz diagrams, and if a variable to be inserted is a data frame it will be converted to a simple HTML table that graphviz can handle. Here is an example. {u} is the syntax for inserting the value of variable u.

x <- data.frame(x1=round(runif(3), 3), x2=.q(a,b,c))
pr(obj=x)

z <- 'digraph {node [shape=plain];
  Foo [shape=oval label=<Information about <font color="blue">{{g}}</font>>];
  Bar [label=<{{u}}>];  // add shape=box to box the table
  Foo -> Bar}'
makegraphviz(z, g='states', u=x, file='gvtest.dot')

The diagram is then rendered with a dot chunk containing a special file: gvtest.dot markup.

See Section 8.1 for a more advanced graphviz example that is along these lines. See this for some excellent graphviz flowchart examples.

Using Tooltips with Mermaid

Note: As of 2022-12-11 Quarto has withdrawn support for tooltips. I hope that is added back someday.

As exemplified in Chapter 8, Mermaid provides an easy way to make many types of diagrams. Diagrams are more valuable when they are dynamic. Mermaid provides an easy way to include pop-up tooltips in diagram nodes, to provide deeper information about the node. When the tooltips contain tables whose columns need to line up, you need to put the following in your document so that tooltips will used a fixed-width font and preserve white space. The best way to include this is to put it in a .css file that is reference in the report’s yaml, or to surround the four lines with <style> … </style>.

mermaidTooltip {
font-family: courier;
white-space: pre;
}

Quarto has excellent support for Graphviz charts, facilitated by the qreport package makegraphviz function to help insert variables and data tables inside diagrams. The Graphviz approach also allows fine control of fonts and colors. It is best to spend a little more time learning the Graphviz dot language with Quarto, with and without using makegraphviz.

4.9 Mixing Graphics and Tables

You may need to compose a matrix of outputs where some elements are graphical and some are tabular. R and Quarto provide a variety of methods for accomplishing this, summarized below, with links.

Base graphics: produce one large image using functions such as lines, points, text; simple to understand but takes a good deal of composition work to compute $x,y$ coordinates for placing text and for keeping the correct column justifications
flextable
patchwork + gridExtra: tables are converted to graphics then layed out using elegant patchwork syntax as exemplified here
ggtext
kableExtra
gt possibly with gtExtras or sparkline
Native Quarto + gridExtra
Native Quarto table with some cells created by converting graphics output to svg (scalable vector graphic using the svglite package) and marked as html

The last two options are appealing because of their minimal dependencies. Here is an example using the next-to-last option based on the layout syntax described in Section 4.2. The page is divided into two rows, with a graph and a table appearing left to right in the first row, and a large graph taking up the whole second row. Between the two elements in the first row, 10% of the width is left blank to separate the two. The gridExtra package is used to convert a table to a plot, and math notation using R plotmath is included.

plot(cars)

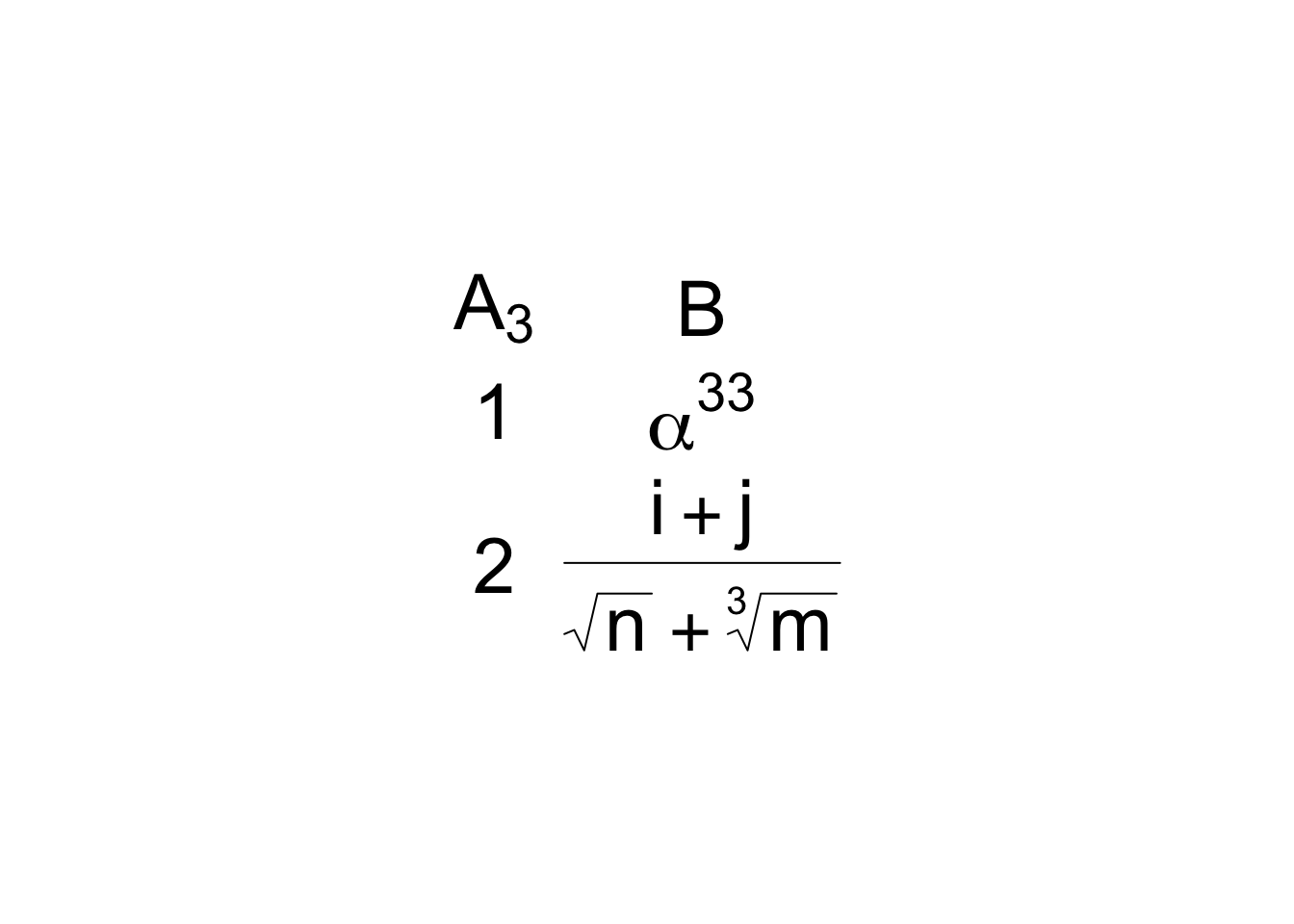

grid::grid.newpage()
# parse=TRUE: make grid.table respect plotmath notation
# also increase font size for the table
tt <- gridExtra::ttheme_minimal(parse=TRUE, base_size=30)
d <- cbind('A[3]'=1:2, B=c('alpha^33', 'frac(i+j,sqrt(n) + sqrt(m, 3))'))
gridExtra::grid.table(d, theme=tt)

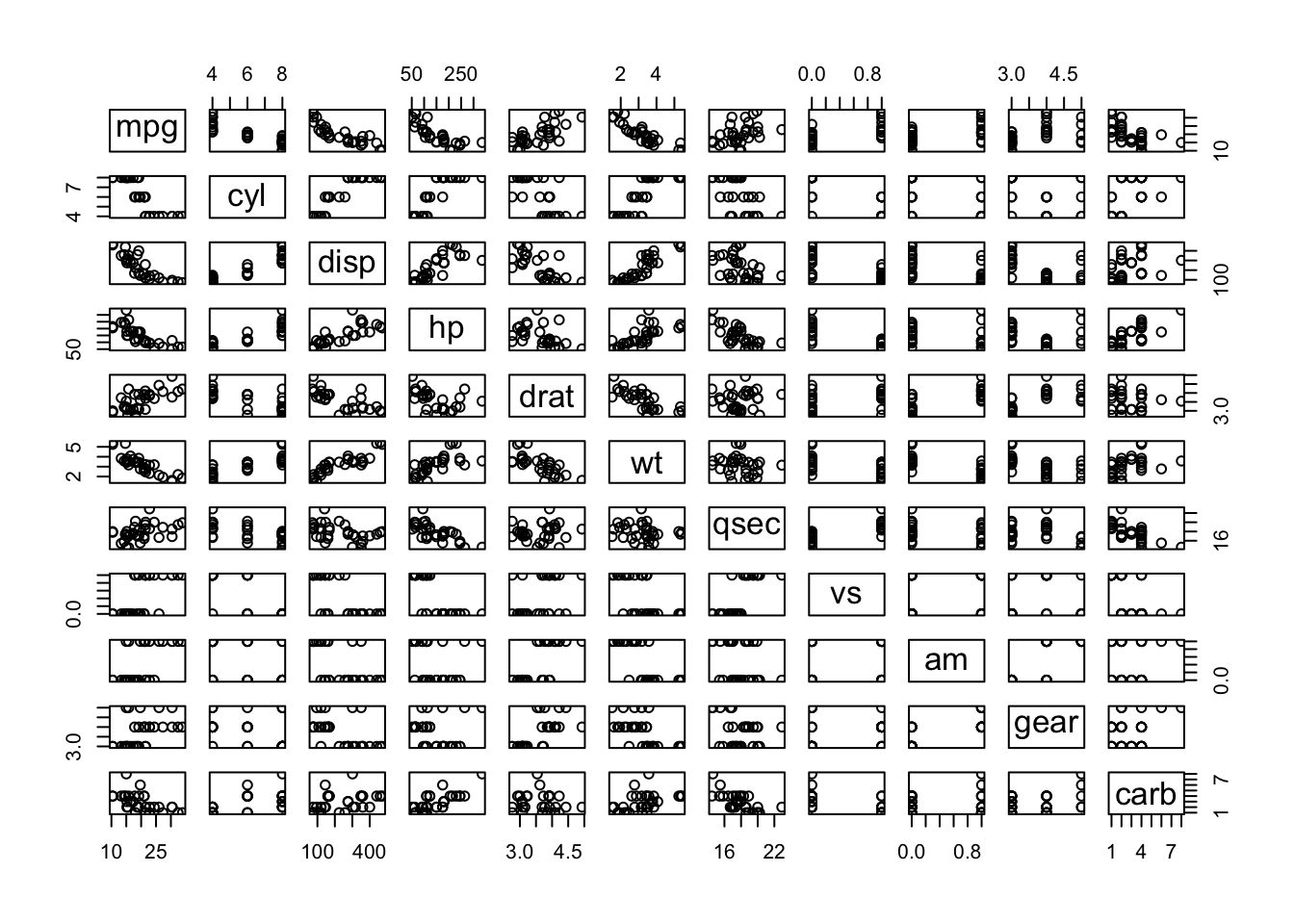

plot(mtcars)

See this tutorial for ways to format specific rows/columns in a grid table.

Now consider the last option. Instead of converting table elements to graphics we convert graphics elements to html by rendering them to svg text using the svglite package and marking the text as html with htmltools::HTML. Here is a function that makes this easy to do. The expr argument is any R expression that produces a graph. It must be enclosed in braces if the expression has more than one command. Arguments ps, cex.lab, cex.axis, ... are ignored when using ggplot2.

msvg <- function(expr, w=5, h=4, ps=10, cex.lab=.9, cex.axis=0.6,
                 bg='transparent', ...) {
  f <- tempfile(fileext='.svg')
  on.exit(unlink(f))
  svglite::svglite(f, width=w, height=h, pointsize=ps, bg=bg)
  qreport::spar(cex.lab=cex.lab, cex.axis=cex.axis, ...)
  .x. <- expr
  if(inherits(.x., 'ggplot')) print(.x.)
  dev.off()
  htmltools::HTML(readLines(f))
}

In the following example the width of column 1 was specified to be twice the width of column 2, and column 2 is right-justified. An R base graphic is placed in row 1 column 1, and a ggplot2 graphic in row 2 column 2. Column 2 is centered.

`r p1 <- msvg(plot(rnorm(20), ylab=’’), w=4, h=2)`
`r p2 <- msvg(ggplot(mapping=aes(x=1:10, y=rnorm(10))) + geom_point(), w=2.5, h=1.4)`

| A | B |
|:—|:—:|
| `r p1` | Row 1 column 2 |
| $\alpha_{3}^{47}$ | `r p2` |
: Example table with svg graphics {tbl-colwidths=“[2,1]”}

Example table with svg graphics
A	B
	Row 1 column 2
$\alpha_{3}^{47}$

The svg graphics, being scalable, will have full resolution for any level of magnification of the table.

kableExtra and other packages such as gt,flextable, and htmlTable can provide table enhancements. kableExtra would not preserve html for the graphics cell. Here is an example using gt. In this gt approach a data frame is constructed with placeholders for graphics, with the placeholder value being the name of the svg graphics object. Then specific rows and columns are replaced with svg graphics character strings.

See this for gt examples where the same graphics form is used for all the rows for a column.

require(gt)
# Must use double $ for LaTeX math inside gt tables
d <- data.frame(A=c('p1',             '$$\\alpha_{3}^{47}$$'),
                B=c('Row 1 column 2', 'p2'                  ) )
# Define a function that will retrieve the correct graph
s  <- function(x) c(p1 = p1, p2 = p2)[x]

gt(d) |> tab_header(title='Main Title', subtitle='Some Subtitle') |>
         tab_options(column_labels.hidden=TRUE) |>
         tab_options(table_body.hlines.width=0, table.border.top.width=0) |>
         cols_width(A ~ pct(67), B ~ pct(33)) |>
         cols_align(align='left',   columns=A) |>
         cols_align(align='center', columns=B) |>
         text_transform(locations=cells_body(rows=1, columns=A), fn=s) |>
         text_transform(locations=cells_body(rows=2, columns=B), fn=s)

Main Title
Some Subtitle
	Row 1 column 2
$$\alpha_{3}^{47}$$

gt has a special function for putting a ggplot in a table cell. Let’s try it. Let’s also replace the first graph with a spike histogram for a normal distribution sample using Hmisc function pngNeedle which produces a png file. Use the gt local_image file to include it.

But note that ggplot_image produces a png file that is not scalable.

g <- ggplot(mapping=aes(x=1:10, y=rnorm(10))) + geom_point()
set.seed(1)
x         <- rnorm(10000)
sp        <- spikecomp(x, method='grid', normalize=FALSE)
spikehist <- pngNeedle(sp$y / max(sp$y), h=14, w=3, lwd=2)
gt(d) |> text_transform(locations=cells_body(rows=1, columns=A),
                        fn=function(x) local_image(spikehist, height=14)) |>
         text_transform(locations=cells_body(rows=2, columns=B),
                        fn=function(x)
                                                   ggplot_image(g, height=200, aspect=1.5)) |>
         tab_options(column_labels.hidden=TRUE)

1: spikecomp is in the Hmisc package and computes coordinates of spike histograms, rounding continuous values to pretty numbers.
2: pngNeedle in Hmisc plots a spike histogram without labeling the original data values, and returns the name of a .png file containing the short and wide plot. It needs values to be in $[0,1]$ so the input vector consists of counts divided by the maximum over all counts. Height h is in pixels.
3: aspect is the width:height aspect ratio.

	Row 1 column 2
$$\alpha_{3}^{47}$$

Instead of using a static spike histogram in the upper left column let’s use the sparkline package’s sparkline function to draw an interactive spike histogram, using similar examples from here and these jQuery javascript options. See also this.

A disadvantage of this approach is that bar charts drawn using sparkline use $y$ coordinates (here, relative frequency) as tooltips (mouse hover text) instead of the more informative $x$ coordinates.

require(sparkline)
sparkline(0)   # load javascript dependencies

spike <- htmltools::HTML(spk_chr(values=round(sp$y / sum(sp$y), 4), type='bar',
                                 chartRangeMin=0, zeroColor='lightgray',
                                 barWidth=1, barSpacing=1, width=200))
gt(d) |> text_transform(locations=cells_body(rows=1, columns=A),
                        fn=function(x) spike) |>
         text_transform(locations=cells_body(rows=2, columns=B),
                        fn=function(x) ggplot_image(g, height=200, aspect=1.5)) |>
         tab_options(column_labels.hidden=TRUE) |>
         cols_width(A ~ pct(40), B ~ pct(60))

	Row 1 column 2
$$\alpha_{3}^{47}$$

Let’s improve the information by including $x$ coordinates in tooltips, using an example from here (see also here). At the lowest x value, expand the tooltip to include quartiles, min, max, $n$, and mean. Include the frequency count in addition to relative frequency.

spike <- function(x, w=200) {
  x        <- x[! is.na(x)]
  sp       <- spikecomp(x, method='grid', normalize=FALSE)
  freq     <- sp$y
  xvals    <- paste0('x=', sp$x, '<br>n=', freq)
  qu       <- paste0('Q<sub>', 1:3, '</sub>  : ', round(quantile(x, (1:3)/4), 3))
  ot       <- paste0(c('n   :', 'Min :', 'Max :', 'Mean :'),
                     c(length(x), round(c(range(x, na.rm=TRUE), mean(x)), 3)))
  stats    <- paste(c(ot[1:2], qu, ot[3:4]), collapse='<br>')
  xvals[1] <- paste0(stats, '<br><br>', xvals[1])
  htmltools::HTML(spk_chr(values=round(freq / sum(freq), 4), type='bar',
                          chartRangeMin=0, zeroColor='lightgray',
                          barWidth=1, barSpacing=1, width=w,
                          tooltipFormatter=tt(xvals)))
}

# Define javascript function to construct the tooltip
tt <- function(xv)
  htmlwidgets::JS(
    sprintf(
      "function(sparkline, options, field){
       debugger;
       return %s[field[0].offset] + '<br/>' + field[0].value;
       }",
      jsonlite::toJSON(xv) ) )

sp <- spike(x)
gt(d) |> text_transform(locations=cells_body(rows=1, columns=A),
                        fn=function(x) sp) |>
         text_transform(locations=cells_body(rows=2, columns=B),
                        fn=function(x) ggplot_image(g, height=200, aspect=1.5)) |>
         tab_options(column_labels.hidden=TRUE) |>
         cols_width(A ~ pct(40), B ~ pct(60))

	Row 1 column 2
$$\alpha_{3}^{47}$$

In many situations we need the same type of micrographic constructed for all rows. Creat a gt table with a spike histogram for each of several continuous variables in the support dataset.

getHdata(support)
X <- subset(support, select=c(age, slos, totcst, meanbp, hrt, temp, crea))
s <- sapply(X, spike, w=300)         # apply spike to each variable in X
# Or: require(data.table)
#     setDT(support)
#     s <- support[, sapply(.SD, spike, w=250), .SDcols=.q(age,slos,totcst,meanbp,hrt,temp,crea)]
d <- data.frame(Variable          = names(X),
                Label             = sapply(X, label),
                Units             = .q(y, d, '$', 'mmHg', bpm, '$$^\\circ C$$', 'mg/dL'),
                'Spike Histogram' = names(X),
                check.names=FALSE)   # allow space inside name
gt(d) |> text_transform(locations=cells_body(columns=4), fn=function(x) s) |>
         tab_style(style=cell_text(weight='bold'), locations=cells_body(columns=Variable)) |>
         tab_style(style=cell_text(size='small'), locations=cells_body(columns=Label)) |>
         tab_style(style=cell_text(size='small', style='italic'), locations=cells_body(columns=Units)) |>
         tab_options(table.width=pct(90))

Variable	Label	Units
age	Age	y
slos	Days from Study Entry to Discharge	d
totcst	Total RCC cost	$
meanbp	Mean Arterial Blood Pressure Day 3	mmHg
hrt	Heart Rate Day 3	bpm
temp	Temperature (celcius) Day 3	$$^\circ C$$
crea	Serum creatinine Day 3	mg/dL

This approach forms the basis of the Hmisc print.describe function when options(prType='html') and you code print(describe(...), 'continuous').

Hover over the smallest value in a spike histogram sparkline to see the 5 smallest distinct data values, or over the largest value to see the 5 largest. The column: screen-inset yaml markup is used to show this very wide table.

options(prType='html')
des <- describe(support)
print(des, 'continuous')

`support` Descriptives
24 Continous Variables of 35 Variables, 1000 Observations
Variable	Label	n	Missing	Distinct	Info	Mean	Gini \|Δ\|	Quantiles .05 .10 .25 .50 .75 .90 .95
age	Age	1000	0	970	1.000	62.47	18.2	33.76 38.91 51.81 64.90 74.50 81.87 86.00
slos	Days from Study Entry to Discharge	1000	0	88	0.998	17.86	17.3	4 4 6 11 20 37 53
d.time	Days of Follow-Up	1000	0	582	1.000	475.7	576.4	5.0 8.0 27.0 256.5 725.0 1464.3 1757.1
edu	Years of Education	798	202	25	0.969	11.78	3.897	6 8 10 12 14 16 18
scoma	SUPPORT Coma Score based on Glasgow D3	1000	0	11	0.650	11.74	19.34	0.0 0.0 0.0 0.0 9.0 44.0 62.4
charges	Hospital Charges	975	25	967	1.000	56271	69155	3757 4688 10029 26499 63622 147109 223582
totcst	Total RCC cost	895	105	895	1.000	30490	36194	2484 3081 5899 15110 37598 72906 114932
totmcst	Total micro-cost	628	372	617	1.000	26168	30192	1653 2548 5297 13828 33691 66229 96753
avtisst	Average TISS, Days 3-25	994	6	241	1.000	22.64	14.86	6.00 8.00 12.00 19.00 31.75 43.33 48.00
meanbp	Mean Arterial Blood Pressure Day 3	1000	0	122	1.000	84.98	30.88	47.00 55.00 64.75 78.00 107.00 120.00 128.05
wblc	White Blood Cell Count Day 3	976	24	282	1.000	12.4	8.577	2.475 4.800 6.899 10.449 15.500 22.248 27.524
hrt	Heart Rate Day 3	1000	0	124	1.000	97.87	35.69	54.0 60.0 72.0 100.0 120.0 135.0 146.1
resp	Respiration Rate Day 3	1000	0	45	0.993	23.49	10.33	9 10 18 24 29 36 40
temp	Temperature (celcius) Day 3	1000	0	64	0.999	37.08	1.374	35.50 35.80 36.20 36.70 38.09 38.80 39.20
pafi	PaO2/(.01*FiO2) Day 3	747	253	463	1.000	244.2	126	92.61 115.00 156.33 226.66 310.00 400.00 442.81
alb	Serum Albumin Day 3	622	378	38	0.998	2.917	0.8797	1.800 2.000 2.400 2.800 3.400 4.000 4.199
bili	Bilirubin Day 3	703	297	115	0.997	2.527	3.385	0.3000 0.3000 0.5000 0.7999 1.7998 5.8594 12.5896
crea	Serum creatinine Day 3	997	3	87	0.997	1.808	1.468	0.6000 0.7000 0.8999 1.2000 1.8999 3.6396 5.5996
sod	Serum sodium Day 3	1000	0	42	0.997	137.7	6.706	129 131 134 137 141 145 148
ph	Serum pH (arterial) Day 3	750	250	53	0.998	7.416	0.08433	7.289 7.319 7.380 7.420 7.470 7.500 7.520
glucose	Glucose Day 3	530	470	226	1.000	156.4	85.09	74.0 82.0 100.0 128.0 185.0 269.3 327.5
bun	BUN Day 3	545	455	106	1.000	32.61	27.12	7.0 9.0 14.0 23.0 43.0 68.6 88.8
urine	Urine Output Day 3	483	517	359	1.000	2194	1562	141.7 600.0 1208.5 1925.0 2900.0 4087.6 4822.5
adlsc	Imputed ADL Calibrated to Surrogate	1000	0	251	0.967	1.98	2.185	0.000 0.000 0.000 1.670 3.042 5.000 6.000

print(des, 'categorical')

`support` Descriptives
11 Categorical Variables of 35 Variables, 1000 Observations
Variable	Label	n	Missing	Distinct	Info	Sum	Mean	Gini \|Δ\|
death	Death at any time up to NDI date:31DEC94	1000	0	2	0.665	668	0.668	0.444
sex		1000	0	2
hospdead	Death in Hospital	1000	0	2	0.567	253	0.253	0.3784
dzgroup		1000	0	8
dzclass		1000	0	4
num.co	number of comorbidities	1000	0	8	0.937		1.886	1.449
income		651	349	4
race		995	5	5
adlp	ADL Patient Day 3	366	634	8	0.842		1.246	1.766
adls	ADL Surrogate Day 3	690	310	8	0.899		1.755	2.295
sfdm2		841	159	5

# Report Formatting {#sec-rformat} ```{mermaid} flowchart LR Fig[Figures] --> Lay[Layout Size] Tab[HTML Tables] Place[Placement] --> places[Margin Tabs Expand/Hide Mixing Tables and Graphics] rept[qreport] --> rhf[Report Writing Helper Functions] OF[Overall Format] --> ofs[HTML] OF --> ltx[LaTeX] --> pdf[pdf] OF --> mfd[Multi-Format Reports] MD[Metadata Report Annotations] --> mds[Variable Labels and Units] ``` A state-of-the-art way to make reproducible reports is to use a statistical computing language such as R and its [`knitr`](https://cran.r-project.org/web/packages/knitr) package in conjunction with either [`RMarkdown`](https://rmarkdown.rstudio.com) or [`Quarto`](https://quarto.org), with the latter likely to replace the former. Both of the report-making systems allow one to produce reports in a variety of formats including html, pdf, and Word. Html is recommended because pages can be automatically resized to allow optimum viewing on devices of most sizes, and because html allows for interactive graphics and other interactive components. Pdf is produced by converting `RMarkdown` or `Quarto`-produced markdown elements to $\LaTeX$.[Report formatting is very much enhanced by using variable attributes such as labels and units of measurement that are not considered in base R. Methods for better annotating output using labels and units are given below.]{.aside} This document can serve as a template for using R with `Quarto`; one can see the raw script by clicking on `Code` at the top right of the report. When one has only one output format target, things are fairly straightforward except some situations where mixed formats are rendered in the same code *chunk*. Click below for details. ::: {.callout-note collapse="true"} # Notes on Printing Mixed Tabular Output in Chunks With `Hmisc` package version 4.8 and later and `rms` package 6.5-0 and later, rendering in html no longer requires `results='asis'` in chunk headers, and a chunk can mix plain text and html without any problems. The following applies to earlier versions. To make use of specialized functions that produce html or $\LaTeX$ markup, one often has to put `results='asis'` in the code chunk header to keep the system from disturbing the generated html or $\LaTeX$ markup so that it will be typeset correctly in the final document. This process works smoothly but creates one complication: if you print an object that produces plain text in the same code chunk, the system will try to typeset it in html or $\LaTeX$. To prevent this from happening you either need to split the chunks into multiple chunks (some with `results='asis'` and some not) or you need to make it clear that parts of the output are to be typeset verbatim. To do that a simple function `pr` can sense if `results='asis'` is in effect for the current chunk. If so, the object is surrounded by the `markdown` verbatim indicator---three consecutive back ticks. If not the object is left alone. `pr` is defined in the `marksupSpecs$markdown$pr` object, so you can bring it to your session by copying into a local function `pr` as shown below, which has a chunk option `results='asis'` to show that verbatim output appears anyway. If the argument `obj` to `pr` is a data frame or data table, variables will be rounded to the value given in the argument `dec` (default `dec=3`) before printing. If you specify `inline=x` the object `x` is printed with `cat()` instead of `print()`. `inline` is more for printing character strings. An example of something that may not render correctly due to `results='asis'` being in the chunk header (needed for `html(...)`): ```{r eval=FALSE} options(prType='html') f <- ols(y ~ rcs(x1, 5)) f # prints model summary in html format m <- matrix((1:10)/3, ncol=2) m # use pr(obj=m) to fix ``` Here are examples of `pr` usage. ```{r,results='asis'} require(Hmisc) pr <- markupSpecs$markdown$pr x <- (1:5)/7 pr('x:', x) pr(obj=x) pr(inline=paste(round(x,3), collapse=', ')) ``` Instead of working to keep certain outputs verbatim you can use `knitr::kable()` to convert verbatim output to markdown. Also see the `yaml` [`df-print`](https://quarto.org/docs/computations/r.html#data-frames) html option, for which you may want to set `df-print: kable`. ::: `knitr/Quarto` will by default print data frames and other simple tables using html. Even though this is seldom needed, you can make `knitr` use plain text printing by putting this code at the top of the report to redefine the default `knitr` printing function. ```{r eval=FALSE} knit_print <- knitr::normal_print ``` ## `Quarto` Syntax for Figures One can specify sizes, layouts, captions, and more using `Quarto` markup. Captions are ignored unless a figure is given a label. Figure labels must begin with `fig-`. The figure can be cross-referenced elsewhere in the document using for example `See \@fig-scatterplot`. `Figure` will be placed in front of the figure number automatically. Here is example syntax.[[This](https://github.com/quarto-dev/quarto-cli/discussions/8354) explains how to cross-reference subfigures.]{.aside} | ```{r} | #| label: fig-myplot | #| fig-cap: "An example caption (use one long line for caption)" | #| fig-height: 3 | #| fig-width: 4 | plot(1:7, abs(-3 : 3)) | ``` If the code produces multiple plots you can combine them into one with a single overall caption and include subcaptions for the individual panels: | ```{r} | #| label: fig-myplot | #| fig-cap: "Overall caption ..." | #| fig-height: 3 | #| fig-width: 4 | #| layout-ncol: 2 | #| fig-subcap: | #| - "Subcaption for panel (a)" | #| - "Subcaption for panel (b)" | plot(1:7, abs(-3 : 3)) | hist(x) | ``` To include an existing image while making use of `Quarto` for sizing and captioning etc. use this example. | ```{r out.width="600px"} | #| label: fig-mylabel | #| fig-cap: "..." | knitr::include_graphics('my.png') | ``` If you don't need to caption or cross-reference the figure use e.g. | <src image="my.png" width=80%> Other examples are in the next section. The `qreport` package has helper functions for building a table of figures. To use those, put `addCap()` or `addCap(scap="short caption for figure")` as the first line of code in the chunk. The full caption is taken as the `fig-cap:` markup. If you don't specify `scap` too `addCap` the short caption will be taken as the `fig-scap:` markup, or if that is missing, the full caption. At the end of the report you can print the table of figures using the following syntax (but surround the last line with back ticks). | # Figures | | r printCap() For chunks having `#| label: fig-` you can automatically have `knitr` call `addCap` at the start of a chunk, extracting the needed information, if you run the `qreport` function `hookaddcap()` in a chunk before the first chunk that produced a graph. This procedure is used through this book. `addCap` makes use of `fig-scap:` for short captions. ## `Quarto` Built-in Syntax for Enhancing R Output {#sec-rformat-quarto} Helper functions described below allow one to enhance graphical and tabular R output by taking advantage of `Quarto` formatting features. These functions allow one to produce different formats within one code chunk, e.g., a plot in the margin and a table in a collapsible note appearing after the code chunk. But if you need only one output format within a chunk you can make use of built-in syntax as described [here](https://quarto.org/docs/authoring/article-layout.html). The `yaml`-like syntax also allows you to specify heights and widths for figures, plus multi-figure layouts. Here is some example code with all the markup shown. | ```{r} | #| column: margin | #| fig-height: 1 | #| fig-width: 3 | par(mar=c(2, 2, 0, 0), mgp=c(2, .5, 0)) | set.seed(1) | x <- rnorm(1000) | hist(x, nclass=40, main='') | x[1:3] # ordinary output stays put | knitr::kable(x[1:3]) # html output put in margin | hist(x, main='') | ``` This results follow. ```{r} #| column: margin #| fig-height: 1 #| fig-width: 3 par(mar=c(2, 2, 0, 0), mgp=c(2, .5, 0)) set.seed(1) x <- rnorm(1000) hist(x, nclass=40, main='') x[1:3] # ordinary output stays put knitr::kable(x[1:3]) # html output put in margin hist(x, main='') ``` Here are a few markups for figure layout inside R chunks. Wide page (takes over the margins) and put multiple plots in 1 row: | #| column: screen-inset | #| layout-nrow: 1 What I use the most: a wide column that just expands a little into the right margin, especially appropriate when the table of contents is on the right: | #| column: screen-right When plotting 3 figures put the first 2 in one row and the third in the second row and make it wide. | #| layout: [[1,1], [1]] Make the top left panel be wider than the top right one. | #| layout: [[70,30], [100]] Top left and top right panels have equal widths but devote 0.1 of the total width to an empty region between the two top panels. | #| layout: [[45, -10, 45], [100]] See [here](https://quarto.org/docs/authoring/figures.html) for details about figure specifications inside code chunks. You can put some `.aside` information [to the right of R output](https://github.com/quarto-dev/quarto-cli/discussions/2895). [Tab sets](https://quarto.org/docs/output-formats/html-basics.html#tabsets) and [collapsible text](https://quarto.org/docs/authoring/callouts.html#customizing-appearance) are frequently helpful in report writing. [Tricks can be used](https://stackoverflow.com/questions/76783896) to flip all tabs with a single button. For example, if a series of analyses were done in parallel using both parametric and nonparametric methods, one can use CSS so that when clicking a `Nonparametric` tab all the nonparametric analysis results will show throughout the document. ## `Quarto` Report Writing Helper Functions Helper functions are defined when you activate the `qreport` package. You can get help on these functions by the usual way of typing `?functionname` at the console. Several of the functions construct `Quarto` _callouts_ which are fenced-off sections of markup that trigger special formatting, especially when producing html. The special formatting includes collapsible sections and marginal notes. Here is a summary of some of the `qreport` (plus a few from `Hmisc`) helper functions. For most of these functions you have to put `results='asis'` in the chunk header. | Function | Purpose | |------|---------| |`dataChk` |run a series of logical expressions for checking data consistency, put results in separate tabs using `maketabs`, and optionally create two summary tabs| |`dataOverview`|runs a data overview report| |`missChk` |creates a series of analyses of the extent and patterns of missing values in a data table or data frame, and puts graphical summaries in tabs| |`hookaddcap` |makes `knitr` automatically extract figure labels, captions, short captions for use in list of figures| |`htmlList` |print a named `list` using the names as headers| |`kabl` |front-end to `knitr::kable` and `kables`. If you run `kabl` on more than one object it will automatically call `kables`. | |`makecallout`|generic Quarto callout maker used by `makecnote`, `makecolmarg`| |`makecnote` |print objects or run code and place output in an initially collapsed callout note| |`makecolmarg`|print objects or run code and place output in a marginal note| |`maketabs` |print objects or run code placing output in separate tabs| |`makemermaid`|makes a `mermaid` diagram with R variable values included in the diagram| |`makegraphviz`|similar to `makemermaid` but using `graphviz`| |`varType` |classify variables in a data table/frame or a vector as continuous, discrete, or non-numeric non-discrete| |`conVars` |use `varType` to extract list of continuous variables| |`disVars` |use `varType` to extract list of discrete variables| |`vClus` |run `Hmisc::varclus` on a dataset after reducing it| The input to `maketabs`, as will be demonstrated later, may be a named `list`, or more commonly, a series of formulas whose right-hand sides are executed and the result of each formula is placed in a separate tab. The left side of the formula becomes the tab label. For `makecolmarg` there should be no left side of the formula as marginal notes are not labeled. For the named `list` option the `list` names become the tab names. Examples of both approaches appear later in this report. In formulas, a left side label must be enclosed in back ticks and not quotes if it is a multi-word string. A `wide` argument is used to expand the width of the output outside the usual margins. An `initblank` argument creates a first tab that is empty. This allows one to show nothing until one of the other tabs is clicked. Alternately you can specify as the first formula \` \` ~ \` \`. [See [this](https://stackoverflow.com/questions/74707808) for another way to generate tabs. See [this](https://github.com/quarto-dev/quarto-cli/discussions/7887) for more information about dynamic generation of markdown text and `knitr` components with R.]{.aside} The two approaches to using `maketabs` also apply to `makecnote` and `makecolmarg`. Examples of the "print an object and place it inside a callout" are given later in the report for `makecnote` and `makecolmarg`. Here is an example of the more general formula method that can render any object, including html widgets as produced by `plotly` graphics. An interactive `plotly` graphic appears at the bottom of the plots in the right margin. You can single click on elements in the legend to turn them off and on, and double click within the legend to restore to default values. ```{r makecex,results='asis'} require(Hmisc) require(qreport) options(plotlyauto=TRUE) # makes Hmisc use plotly's auto size option # rather than computing height, width set.seed(1) x <- round(rnorm(100, 100, 15)) makecolmarg(~ table(x) + raw + hist(x) + plot(ecdf(x)) + histboxp(x=x)) # or try makecnote(`makecnote example` ~ kabl(table(x)) + hist(x) + ... # Avoid raw by using kabl(table(x)) instead of table(x) ``` Adding `+ raw` to a formula in `makecnote`, `makecolmarg`, or `maketabs` forces printed results to be treated as raw verbatim R output. `makecallout` is a general `Quarto` callout maker that implements different combinations of the following: `list` or formula, `print` or run code, defer executing and only produce the code to execute vs. running the code now, and close the callout or leave it open for more calls. `qreport` also has helper functions for interactively accessing information to help in report and analysis building: | Function | Purpose | |-----------|--------| |`htmlView`|view html-converted objects in `RStudio` `View` pane| |`htmlViewx`|view html-converted objects in external browser| However the automatic viewing of html objects in the `RStudio` `Viewer` will satisfy most needs. ## Multi-Output Format Reports {#sec-rformat-multi} To allow one report to be used to render multiple output formats, especially html and pdf, it is helpful to be able to sense which output format is currently in play, and to use different functions or options to render output explicitly for the current format. Here is how to create variables that can be referenced simply in code throughout the report, and to invoke the `plotly` graphics package if output is in html to allow interactivity. A small function `ggp` is defined so that if you run any `ggplot2` output through it, the result will be automatically converted to `plotly` using the `ggplotly` function, otherwise it is left at standard static `ggplot2` output if html is not the output target.[See [this](https://hbiostat.org/ordinal) for examples of articles rendered in both html and PDF from the same script.]{.aside} ```{r senseformat} outfmt <- if(knitr::is_html_output ()) 'html' else 'pdf' markup <- if(knitr::is_latex_output()) 'latex' else 'html' ishtml <- outfmt == 'html' if(ishtml) require(plotly) ggp <- if(ishtml) ggplotlyr else function(ggobject, ...) ggobject # See below for more about ggplotlyr (a front end for ggplotly that can # correct a formatting issue with hover text) ``` `Quarto` has a excellent facility for [conditionally including document sections](https://quarto.org/docs/authoring/conditional.html) depending on the currently chosen output format. ::: {.callout-note collapse="true"} ## Special Considerations For $\LaTeX$/PDF The `Hmisc`, `rms`, and `rmsb` packages have a good deal of support for creating $\LaTeX$ output in addition to html. They require some special $\LaTeX$ packages to be accessed. In addition, if using any of `Quarto`'s nice features for making marginal notes, there is another $\LaTeX$ package to attach. Below you'll find what needs to be added to the `yaml` prologue at the top of your script if using `Quarto`. You have to modify `pdf-engine` to suit your needs. I use `luatex` because it handles special unicode characters. In the future (approximately July 2022) a bug in `Pandoc` will be fixed and you can put `links-as-notes: true` in the `yaml` header instead of redefining `href` and linking in `hyperref`. ``` format: html: self-contained: true . . . pdf: pdf-engine: lualatex toc: false number-sections: true number-depth: 2 top-level-division: section reference-location: document listings: false header-includes: \usepackage{marginnote, here, relsize, needspace, setspace, hyperref} \renewcommand{\href}[2]{#2\footnote{\url{#1}}} ``` The `href` redefinition above turns URLs into footnotes if running $\LaTeX$. There is one output element provided by `Quarto` that will not render correctly to $\LaTeX$: a marginal note using the markup `.column-margin`. To automatically use an alternate in-body format, define a function that can be used for both typesetting formats. ```{r eval=FALSE} mNote <- if(ishtml) '.column-margin' else '.callout-note appearance="minimal"' ``` Then use <tt>r mNote</tt> enclosed in back ticks in place of the `.column-margin` callout for generality. ::: ::: {.callout-note collapse="true"} ## Special Considerations For Microsoft Word `Quarto` and its workhorse `Pandoc` now are quite good at creating Word `.docx` files, even allowing $\LaTeX$ math expressions to render well and be editable in Word. Missing is the ability to handle marginal notes including `.aside`s. When collaborating with a Word user by sending her a `.docx` file whenever a report is updated, it is hard but necessary to discourage her from editing the `docx` file instead of communicating changes back to you to make in the primary `.qmd` file. But often the collaborator is using parts of your report to build another Word document. In that case it is important for the collaborator to be able to see what changed since the last report. The minimal-effort way to do this is to save the last version of the `.docx` file and send both the last and current versions to the collaborator. She can then [compare the two versions in Word](https://zapier.com/blog/compare-two-word-documents) to see exactly what has changed. ::: ::: {.callout-note collapse="true"} ## Saving Graphics Images Even when producing only html, one may wish to save individual graphics for manuscript writing. For non-interactive graphics you can right click on the image and download the `.png` file. For interactive plots, `plotly` shows a "take a snapshot" icon when you hover over the image. Clicking this icon will produce a static `.png` snapshot of the graph. Some graphs are not appropriate for static documents, and the variables created in the code above can be checked so that, for example, an alternative graph can be produced when making a `.pdf` file. But in other cases one just produces an additional static plot that is not shown in the html report. See the margin note near @fig-survplotp for an example. ::: ::: {.callout-note collapse="true"} ## Using `Hmisc` Formatting for Variable Labels in Tables As done with various `Hmisc` and `rms` package functions, one can capitalize on `Hmisc`'s special formatting of variable labels and units when constructing tables in $\LaTeX$ or html. The basic constructs are shown in the code below. ```{r labtab,eval=FALSE} # Retrieve a set of markup functions depending on typesetting format # See below for definition of ishtml specs <- markupSpecs[[if(ishtml) 'html' else 'latex']] # Hmisc markupSpecs functions create plain text, html, latex, # markdown, or plotmath code varlabel <- specs$varlabel # retrieve an individual function # Format text describing variable named x # hfill=TRUE typesets units to be right-justified in label # Use the following character string as a row label # Default specifies the string to use if there is no label # (usually taken as the variable name) varlabel(label(x, default='x'), units(x), hfill=TRUE) ``` For plotting and sometimes for html, the `Hmisc` `hlab` function is used. It makes label and units lookups easy. For plain text formatting of labels/units, the `Hmisc` `vlab` function is easy to use. ::: ## HTML Tables {#sec-rformat-html} Nicely formatted tables can be created in multiple ways: * using customized code that directly writes html markup * using customized code that directly writes $\LaTeX$ markup * using customized code that writes markdown markup (e.g., "pipe" tables) * hand coding markdown (usually pipe tables) The latter two provide less flexibility but have the advantage of being automatically converted to html or $\LaTeX$ depending on your destination format. Here is an example of a hand coded markdown pipe table. Note (1) the second line of the markup indicates that the first column is to be left-justified and the second column right-justified, and (2) you can include computed values from R expressions. On the caption line we specify that the first column occupies 2/3 of the width. We could have specified `tbl-colwidths="[67,33]"` to get the same result. | | This Column | That Column | | |:-----|-----:| | | cat | dog | | | `r rwrap('pi')` | `r rwrap('2+3')` | | : Table caption {tbl-colwidths="[2,1]"} The result is | This Column | That Column | |:-----|-----:| | cat | dog | | `r pi` | `r 2+3` | : Table caption {tbl-colwidths="[2,1]"} There is an automatic feature of html that makes it especially attractive as a destination format: If a cell contains a long string of characters, those strings will be line-wrapped appropriately, with the line length depending on the width of the display device. The `knitr` package `kable` function provides an easy way to produce html tables from data tables/frames and matrices, and `knitr::kables` allows one to put several tables together. The `qreport` package `kabl` function combines the features of `kable` and `kables`. The [`kableExtra`](https://cran.r-project.org/web/packages/kableExtra/index.html) package allows you to greatly extend what `kable` can do. There are many R packages and functions for making advanced html tables. See for example the `Table 1` tab in @sec-descript. This table was produced by the `Hmisc` package `summaryM` function, which used the `htmlTable` function in the [`htmlTable`](https://cran.r-project.org/web/packages/htmlTable) package. Other packages to consider are [`gt`](https://cran.r-project.org/web/packages/gt/index.html) (see @sec-rformat-mix) and its uncredited predecessor [`tangram`](https://cran.r-project.org/web/packages/tangram), and packages discussed [here](https://rfortherestofus.com/2019/11/how-to-make-beautiful-tables-in-r). The central guide for basic table making in `Quarto` is [here](https://quarto.org/docs/authoring/tables.html). ### `gt` Package {#sec-rformat-gt} The [`gt` package](https://gt.rstudio.com) is to tables as `ggplot2` is to graphs. `gt` provides a wide variety of formatting opportunities allowing one to flexibly create fairly complex tables that can contain interactive elements. Like `ggplot2`, table elements (column headings, rows, columns, or row-column combinations) are specified by adding layers to an accumulating `gt` object using a pipe operator ("pass along to") such as `|>`. Unlike `ggplot2`, `gt` can translate `markdown` elements to html on-the-fly. This allows you to do things like including bullet lists and small tables inside `gt` table cells. [See for example the `Categorical` tab in @sec-case-desc for an example where small `markdown` tables appear inside a larger `gt` table.]{.aside} Here is an example that includes many of the `gt` features that are commonly needed. See @sec-rformat-mix for how to put graphics in `gt` table cells, and see @sec-sstats-gt for another `gt` example. ```{r} require(gt) # Define a data frame that forms the table rows and columns set.seed(1) d <- data.frame( Item = c(runif(3), NA), chi = rchisq(4, 3), '$$X_2$$' = rnorm(4), Markdown = c('* part 1\n* part 2\n* part 3', '', '', '**xxx**'), Y = c('$$\\alpha_{3}^{4}$$', rep('', 3)), check.names = FALSE) # allows illegal R column names gt(d) |> tab_header(title=md('**Main Title $\\beta_3$ Using `gt`**'), # <1> subtitle='Some Subtitle') |> tab_options(table.width=pct(65)) |> # <2> tab_spanner('Numeric Variables', columns=1:3) |> tab_spanner('Non-Numeric Variables', columns=c(Markdown, Y)) |> tab_row_group(md('**After** Intervention'), rows=3:4) |> tab_row_group('Before Intervention', rows=1:2) |> tab_options(row_group.font.weight='bold', row_group.background.color='lightgray')|> sub_missing(missing_text='') |> # <3> fmt_number(columns=c(Item, '$$X_2$$'), decimals=2) |> # <4> cols_label(Y ~ html('Velocity of Thing'), chi ~ md('$$\\chi^2_{3}$$')) |> # <5> cols_width(Markdown ~ px(160)) |> # <6> cols_align(align='center', columns=Y) |> fmt_markdown(columns=Markdown, rows=1) |> # <7> tab_style(style=cell_text(size='small'), locations=cells_body(columns=Markdown)) |> # <8> tab_style(style=cell_text(color='blue', align='right'), # <9> locations=cells_column_labels(columns='$$X_2$$')) |> tab_source_note(md('_Note_: There is a bug in `tab_row_group` in `gt` version 0.9.0 causing the row group labels to appear in the reverse order in which they were named. This is why the `tab_row_group` were reversed in the code. The problem is reported [here](https://github.com/rstudio/gt/issues/717).')) |> tab_footnote(md('Carefully calculated based on _bad_ assumptions'), locations=cells_body(columns=Item, rows=Item==min(Item, na.rm=TRUE))) # <10> ``` 1. `md()` allows you to specify `markdown` syntax 1. Make the table have 65% of the report body width 1. Instead of printing `NA` for missing values of `Item`, print blank 1. Two digits to the right of the decimal point for two columns 1. Rename the `Y` column and stack two lines for the label, marking this as html; rename `chi` using `markdown` math notation 1. Make the `Markdown` column 160 pixels wide 1. Transform `markdown` text in column named `Markdown` (quotes not needed in `gt`) but only for the first row. The fourth row rendered `**` literally instead of using bold face. 1. Make column `Markdown` have a small font 1. Make the X_2 column label be blue and right-aligned. Right alignment did not work for math mode. 1. Footnote automatically placed on the row where `Item` has its lowest value To remove certain table elements use these examples. ```{r eval=FALSE} gt(d) |> tab_options(column_labels.hidden=TRUE) |> #<1> tab_options(table_body.hlines.width=0, table.border.top.width=0)|> #<2> cols_hide(columns=c(X1,X2)) #<3> # or g <- ... #<4> g |> cols_hide(columns=Pvalue) #<5> ``` 1. remove column headings 1. remove top line 1. remove columns named `X1` and `X2` 1. some operation that creates a `gt` object, e.g., `print(describe(mydata, 'continuous'))` 1. remove a column and finally render the table ## CSS {#sec-rformat-css} When producing reports in html, you can create custom html styles that `quarto` will use. These styles are defined using HTML5's CSS (cascading style sheets). An example `.css` file is at [hbiostat.org/rflow/h.css](https://hbiostat.org/rflow/h.css), and your report may gain access to such a `.css` file by including a line like `css: h.css` in the top-level `quarto` `yaml` header under the `html:` section. Two of the styles defined by defined by `h.css` are `smaller` and `smaller2`. `smaller` will shrink the font size of a block of text (even one containing code and R output, but it does not apply to tables) to 80% of its original size. `smaller2` will make it 64% of the original size. To invoke these styles we use `quarto` "`divs`" as follows: ``` ::: {.smaller2} This is text that will appear smaller ... ::: ```` Here is an example using `smaller2`. ::: {.smaller2} This is text that will appear smaller. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. More of the same. | X | Y | |---|---| | 2.3 | 4.5 | | 2.2 | 3.3 | ```{r} x <- pi x ``` ::: Another style in `h.css` is `quoteit` which is useful for including quotations. The text is italicized, dark blue, 80% of regular size, and has 10% left and right margins. Here is an example. ```` ::: {.quoteit} Some eloquent quote appears here. The author of the quote is assumed to know what they are talking about, and seem to be able to express themselves. ::: ```` ::: {.quoteit} Some eloquent quote appears here. The author of the quote is assumed to know what they are talking about, and seem to be able to express themselves. ::: As discussed [here](https://stackoverflow.com/questions/72928726) you can use `Quarto's` markdown syntax to style text with CSS, e.g., the color is `[red]{style="color: red;"}`. This can be handy when you change a report and you want someone else to see what's changed. Suppose that changed text is to appear in blue. Define a "mark changed text" character variable `Ch` as follows.[Unfortunately, these HTML colors will not render in Word.]{.aside} ```{r} Ch <- '{style="color:blue;"}' ``` Then you can type "`[This text]``r rwrap('Ch')` has changed" to render the following: [This text]`r Ch` has changed. You can also define a helper function to be generic if you want to use more than one color: ```{r} # substitute keeps you from having to quote a word col <- function(co) { co <- as.character(substitute(co)) paste0('{style="color:', co, ';"}') } ``` Try it: `[This]``r rwrap('col(red)')` is red and `[This other thing]``r rwrap('col(blue)')` is blue. which renders: [This]`r col(red)` is red and [this other thing]`r col(blue)` is blue if rendering to HTML. ## Advanced Tables That Render to Both HTML and Word {#sec-rformat-word} Although there are many advanced table making tools in R for producing HTML, most of these will not properly render to Word much of the time. Functions that directly write HTML markup such as those in the `Hmisc` and `htmlTable` packages produce HTML that `Quarto` and `pandoc` know how to faithfully render to Word. An example multi-format output script is [here](word-tables.qmd), with [HTML output](word-tables.html) and [`.docx` output](word-tables.docx). ## Diagrams {#sec-rformat-diagrams} `Quarto` [builds in](https://quarto.org/docs/authoring/diagrams.html) two diagramming languages: `mermaid` and `graphviz`. @sec-doverview-filter has detailed examples using `mermaid`, which uses a simpler format than `graphviz`. `graphviz` allows for more complex diagrams exemplified [here](https://www.graphviz.org/gallery) and also provides more control. `graphviz` nodes can include HTML tables, and you can even have arrows drawn between table cells or between a table cells and other non-table nodes. Here is an example, taken from [this excellent post](https://stackoverflow.com/questions/70884241). Connections between diagram elements are made possible by assigning _port identifiers_ to elements. [The chunk header refers to `dot` which is a primary module of `graphviz`, for directed graphs.]{.aside} ```` digraph { graph [pad="0.5", nodesep="0.5", ranksep="2"] // splines=ortho for square connections node [shape=plain] rankdir=LR; Foo [label=< <table border="0" cellborder="0" cellspacing="0"> <tr><td>InputFoo</td><td>two </td> </tr><HR/> <tr> <td port="1">one</td><td> two </td></tr> <tr> <td port="2">two</td><td> two </td></tr> <tr> <td port="3">three</td><td> two </td></tr> <tr> <td port="4">four</td><td> two </td></tr> <tr> <td port="5">five</td><td port="a"> two </td></tr> <tr> <td port="6">six</td><td port="b"> two </td></tr> </table>>]; Bar [label=<This and that and that and that>]; Foo:3:w -> Foo:2:w; // node name:port:direction (n,ne,e,se,s,sw,w,nw,c,_) // c=center within node, _=use appropriate node side // See graphviz.org/docs/attr-types/portPos Foo:3:w -> Foo:6:w; Foo:6:w -> Foo:1:w; Foo:1:w -> Foo:a:e; Foo:b:e -> Bar; } ``` ```` ```{dot} digraph { graph [pad="0.5", nodesep="0.5", ranksep="2"] // splines=ortho for square connections node [shape=plain] rankdir=LR; Foo [label=< <table border="0" cellborder="0" cellspacing="0"> <tr><td>InputFoo</td><td>two </td> </tr><HR/> <tr> <td port="1">one</td><td> two </td></tr> <tr> <td port="2">two</td><td> two </td></tr> <tr> <td port="3">three</td><td> two </td></tr> <tr> <td port="4">four</td><td> two </td></tr> <tr> <td port="5">five</td><td port="a"> two </td></tr> <tr> <td port="6">six</td><td port="b"> two </td></tr> </table>>]; Bar [label=<This and that and that and that>]; Foo:3:w -> Foo:2:w; // node name:port:direction (n,ne,e,se,s,sw,w,nw,c,_) // c=center within node, _=use appropriate node side // See graphviz.org/docs/attr-types/portPos Foo:3:w -> Foo:6:w; Foo:6:w -> Foo:1:w; Foo:1:w -> Foo:a:e; Foo:b:e -> Bar; } ``` The `qreport` `makegraphviz` function allows variable insertions into `graphviz` diagrams, and if a variable to be inserted is a data frame it will be converted to a simple HTML table that `graphviz` can handle. Here is an example. `{u}` is the syntax for inserting the value of variable `u`. ```{r results='asis'} x <- data.frame(x1=round(runif(3), 3), x2=.q(a,b,c)) pr(obj=x) z <- 'digraph {node [shape=plain]; Foo [shape=oval label=<Information about {{g}}>]; Bar [label=<{{u}}>]; // add shape=box to box the table Foo -> Bar}' makegraphviz(z, g='states', u=x, file='gvtest.dot') ``` The diagram is then rendered with a `dot` chunk containing a special `file: gvtest.dot` markup. ```{dot} //| file: gvtest.dot ``` See @sec-doverview-filter for a more advanced `graphviz` example that is along these lines. See [this](https://renenyffenegger.ch/notes/tools/Graphviz/examples/index) for some excellent `graphviz` flowchart examples. ::: {.callout-note collapse="true"} ## Using Tooltips with `Mermaid` **Note**: As of 2022-12-11 `Quarto` has [withdrawn support for tooltips](https://github.com/quarto-dev/quarto-cli/discussions/3592). I hope that is added back someday. As exemplified in @sec-doverview, `Mermaid` provides an easy way to make many types of diagrams. Diagrams are more valuable when they are dynamic. `Mermaid` provides an easy way to include pop-up tooltips in diagram nodes, to provide deeper information about the node. When the tooltips contain tables whose columns need to line up, you need to put the following in your document so that tooltips will used a fixed-width font and preserve white space. The best way to include this is to put it in a `.css` file that is reference in the report's `yaml`, or to surround the four lines with `<style>` ... `</style>`. | mermaidTooltip { | font-family: courier; | white-space: pre; | } `Quarto` has excellent support for `Graphviz` charts, facilitated by the `qreport` package `makegraphviz` function to help insert variables and data tables inside diagrams. The `Graphviz` approach also allows fine control of fonts and colors. It is best to spend a little more time learning the `Graphviz` [`dot` language](https://graphviz.org/docs/layouts/dot) with `Quarto`, with and without using `makegraphviz`. ::: ## Mixing Graphics and Tables {#sec-rformat-mix} You may need to compose a matrix of outputs where some elements are graphical and some are tabular. R and `Quarto` provide a variety of methods for accomplishing this, summarized below, with links. * [Base graphics](https://twitter.com/danlewer/status/1642037604487929856?s=20): produce one large image using functions such as `lines`, `points`, `text`; simple to understand but takes a good deal of composition work to compute $x,y$ coordinates for placing text and for keeping the correct column justifications * [`flextable`](https://www.ardata.fr/en/flextable-gallery/2022-10-17-patchwork-flextable) * [`patchwork`](https://cran.r-project.org/web/packages/patchwork/vignettes/patchwork.html) + [`gridExtra`](https://cran.r-project.org/web/packages/gridExtra/vignettes/tableGrob.html): tables are converted to graphics then layed out using elegant `patchwork` syntax as exemplified [here](https://mattherman.info/blog/ppt-patchwork) * [`ggtext`](https://wilkelab.org/ggtext) * [`kableExtra`](https://haozhu233.github.io/kableExtra/awesome_table_in_html.html) * [`gt`](https://gt.rstudio.com) possibly with [`gtExtras`](https://github.com/jthomasmock/gtExtras) or [`sparkline`](https://cran.r-project.org/web/packages/sparkline/index.html) * Native `Quarto` + [`gridExtra`](https://cran.r-project.org/web/packages/gridExtra/vignettes/tableGrob.html) * Native `Quarto` table with some cells created by converting graphics output to svg (scalable vector graphic using the `svglite` package) and marked as html The last two options are appealing because of their minimal dependencies. Here is an example using the next-to-last option based on the `layout` syntax described in @sec-rformat-quarto. The page is divided into two rows, with a graph and a table appearing left to right in the first row, and a large graph taking up the whole second row. Between the two elements in the first row, 10% of the width is left blank to separate the two. The `gridExtra` package is used to convert a table to a plot, and math notation using R `plotmath` is included. ```{r} #| layout: [[45,-10,45], [100]] plot(cars) grid::grid.newpage() # parse=TRUE: make grid.table respect plotmath notation # also increase font size for the table tt <- gridExtra::ttheme_minimal(parse=TRUE, base_size=30) d <- cbind('A[3]'=1:2, B=c('alpha^33', 'frac(i+j,sqrt(n) + sqrt(m, 3))')) gridExtra::grid.table(d, theme=tt) plot(mtcars) ``` ::: {.column-margin} See [this tutorial](https://liluoma22.medium.com/gridtable-gridextra-tutorial-3977aa52c458) for ways to format specific rows/columns in a `grid` table. ::: Now consider the last option. Instead of converting table elements to graphics we convert graphics elements to html by rendering them to svg text using the [`svglite` package](https://cran.r-project.org/web/packages/svglite) and marking the text as html with [`htmltools::HTML`](https://cran.r-project.org/web/packages/htmltools). Here is a function that makes this easy to do. The `expr` argument is any R expression that produces a graph. It must be enclosed in braces if the expression has more than one command. Arguments `ps, cex.lab, cex.axis, ...` are ignored when using `ggplot2`. ```{r} msvg <- function(expr, w=5, h=4, ps=10, cex.lab=.9, cex.axis=0.6, bg='transparent', ...) { f <- tempfile(fileext='.svg') on.exit(unlink(f)) svglite::svglite(f, width=w, height=h, pointsize=ps, bg=bg) qreport::spar(cex.lab=cex.lab, cex.axis=cex.axis, ...) .x. <- expr if(inherits(.x., 'ggplot')) print(.x.) dev.off() htmltools::HTML(readLines(f)) } ``` In the following example the width of column 1 was specified to be twice the width of column 2, and column 2 is right-justified. An R base graphic is placed in row 1 column 1, and a `ggplot2` graphic in row 2 column 2. Column 2 is centered. | `r rwrap('p1 <- msvg(plot(rnorm(20), ylab=\'\'), w=4, h=2)')` | `r rwrap('p2 <- msvg(ggplot(mapping=aes(x=1:10, y=rnorm(10))) + geom_point(), w=2.5, h=1.4)')` | | | A | B | | |:---|:---:| | | `r rwrap('p1')` | Row 1 column 2 | | | `$\alpha_{3}^{47}$` | `r rwrap('p2')` | | : Example table with svg graphics {tbl-colwidths="[2,1]"} `r p1 <- msvg(plot(rnorm(20), ylab=''), w=4, h=2)` `r p2 <- msvg(ggplot(mapping=aes(x=1:10, y=rnorm(10))) + geom_point(), w=2.5, h=1.4)` | A | B | |---|:---:| | `r p1` | Row 1 column 2 | |$\alpha_{3}^{47}$ | `r p2` | : Example table with svg graphics {tbl-colwidths="[2,1]"} The svg graphics, being scalable, will have full resolution for any level of magnification of the table. [`kableExtra`](https://haozhu233.github.io/kableExtra/awesome_table_in_html.html) and other packages such as `gt`,`flextable`, and `htmlTable` can provide table enhancements. `kableExtra` would not preserve html for the graphics cell. Here is an example using [`gt`](https://gt.rstudio.com/reference/local_image.html). [See [this](https://themockup.blog/posts/2020-10-31-embedding-custom-features-in-gt-tables) for `gt` examples where the same graphics form is used for all the rows for a column.]{.aside} In this `gt` approach a data frame is constructed with placeholders for graphics, with the placeholder value being the name of the svg graphics object. Then specific rows and columns are replaced with svg graphics character strings. ```{r} require(gt) # Must use double $ for LaTeX math inside gt tables d <- data.frame(A=c('p1', '$$\\alpha_{3}^{47}$$'), B=c('Row 1 column 2', 'p2' ) ) # Define a function that will retrieve the correct graph s <- function(x) c(p1 = p1, p2 = p2)[x] gt(d) |> tab_header(title='Main Title', subtitle='Some Subtitle') |> tab_options(column_labels.hidden=TRUE) |> tab_options(table_body.hlines.width=0, table.border.top.width=0) |> cols_width(A ~ pct(67), B ~ pct(33)) |> cols_align(align='left', columns=A) |> cols_align(align='center', columns=B) |> text_transform(locations=cells_body(rows=1, columns=A), fn=s) |> text_transform(locations=cells_body(rows=2, columns=B), fn=s) ``` `gt` has a special function for putting a `ggplot` in a table cell. Let's try it. [But note that `ggplot_image` produces a `png` file that is not scalable.]{.aside} Let's also replace the first graph with a spike histogram for a normal distribution sample using `Hmisc` function `pngNeedle` which produces a `png` file. Use the `gt` `local_image` file to include it. ```{r} g <- ggplot(mapping=aes(x=1:10, y=rnorm(10))) + geom_point() set.seed(1) x <- rnorm(10000) sp <- spikecomp(x, method='grid', normalize=FALSE) # <1> spikehist <- pngNeedle(sp$y / max(sp$y), h=14, w=3, lwd=2) # <2> gt(d) |> text_transform(locations=cells_body(rows=1, columns=A), fn=function(x) local_image(spikehist, height=14)) |> text_transform(locations=cells_body(rows=2, columns=B), fn=function(x) ggplot_image(g, height=200, aspect=1.5)) |> # <3> tab_options(column_labels.hidden=TRUE) ``` 1. `spikecomp` is in the `Hmisc` package and computes coordinates of spike histograms, rounding continuous values to pretty numbers. 2. `pngNeedle` in `Hmisc` plots a spike histogram without labeling the original data values, and returns the name of a `.png` file containing the short and wide plot. It needs values to be in $[0,1]$ so the input vector consists of counts divided by the maximum over all counts. Height `h` is in pixels. 3. `aspect` is the width:height aspect ratio. Instead of using a static spike histogram in the upper left column let's use the `sparkline` package's `sparkline` function to draw an interactive spike histogram, using similar examples from [here](https://themockup.blog/posts/2020-10-31-embedding-custom-features-in-gt-tables) and [these `jQuery` javascript options](https://omnipotent.net/jquery.sparkline/#s-docs). See also [this](https://github.com/htmlwidgets/sparkline/blob/master/inst/examples/sparkline_histogram.R). [A disadvantage of this approach is that bar charts drawn using `sparkline` use $y$ coordinates (here, relative frequency) as tooltips (mouse hover text) instead of the more informative $x$ coordinates.]{.aside} ```{r} require(sparkline) sparkline(0) # load javascript dependencies spike <- htmltools::HTML(spk_chr(values=round(sp$y / sum(sp$y), 4), type='bar', chartRangeMin=0, zeroColor='lightgray', barWidth=1, barSpacing=1, width=200)) gt(d) |> text_transform(locations=cells_body(rows=1, columns=A), fn=function(x) spike) |> text_transform(locations=cells_body(rows=2, columns=B), fn=function(x) ggplot_image(g, height=200, aspect=1.5)) |> tab_options(column_labels.hidden=TRUE) |> cols_width(A ~ pct(40), B ~ pct(60)) ``` Let's improve the information by including $x$ coordinates in tooltips, using an example from [here](https://github.com/htmlwidgets/sparkline/issues/14) (see also [here](https://stackoverflow.com/questions/45179410)). At the lowest `x` value, expand the tooltip to include quartiles, min, max, $n$, and mean. Include the frequency count in addition to relative frequency. ```{r} spike <- function(x, w=200) { x <- x[! is.na(x)] sp <- spikecomp(x, method='grid', normalize=FALSE) freq <- sp$y xvals <- paste0('x=', sp$x, ' n=', freq) qu <- paste0('Q', 1:3, ' : ', round(quantile(x, (1:3)/4), 3)) ot <- paste0(c('n :', 'Min :', 'Max :', 'Mean :'), c(length(x), round(c(range(x, na.rm=TRUE), mean(x)), 3))) stats <- paste(c(ot[1:2], qu, ot[3:4]), collapse=' ') xvals[1] <- paste0(stats, ' ', xvals[1]) htmltools::HTML(spk_chr(values=round(freq / sum(freq), 4), type='bar', chartRangeMin=0, zeroColor='lightgray', barWidth=1, barSpacing=1, width=w, tooltipFormatter=tt(xvals))) } # Define javascript function to construct the tooltip tt <- function(xv) htmlwidgets::JS( sprintf( "function(sparkline, options, field){ debugger; return %s[field[0].offset] + ' ' + field[0].value; }", jsonlite::toJSON(xv) ) ) sp <- spike(x) gt(d) |> text_transform(locations=cells_body(rows=1, columns=A), fn=function(x) sp) |> text_transform(locations=cells_body(rows=2, columns=B), fn=function(x) ggplot_image(g, height=200, aspect=1.5)) |> tab_options(column_labels.hidden=TRUE) |> cols_width(A ~ pct(40), B ~ pct(60)) ``` In many situations we need the same type of micrographic constructed for all rows. Creat a `gt` table with a spike histogram for each of several continuous variables in the `support` dataset. ```{r} getHdata(support) X <- subset(support, select=c(age, slos, totcst, meanbp, hrt, temp, crea)) s <- sapply(X, spike, w=300) # apply spike to each variable in X # Or: require(data.table) # setDT(support) # s <- support[, sapply(.SD, spike, w=250), .SDcols=.q(age,slos,totcst,meanbp,hrt,temp,crea)] d <- data.frame(Variable = names(X), Label = sapply(X, label), Units = .q(y, d, '$', 'mmHg', bpm, '$$^\\circ C$$', 'mg/dL'), 'Spike Histogram' = names(X), check.names=FALSE) # allow space inside name gt(d) |> text_transform(locations=cells_body(columns=4), fn=function(x) s) |> tab_style(style=cell_text(weight='bold'), locations=cells_body(columns=Variable)) |> tab_style(style=cell_text(size='small'), locations=cells_body(columns=Label)) |> tab_style(style=cell_text(size='small', style='italic'), locations=cells_body(columns=Units)) |> tab_options(table.width=pct(90)) ``` This approach forms the basis of the `Hmisc` `print.describe` function when `options(prType='html')` and you code `print(describe(...), 'continuous')`. [Hover over the smallest value in a spike histogram sparkline to see the 5 smallest distinct data values, or over the largest value to see the 5 largest. The `column: screen-inset` yaml markup is used to show this very wide table.]{.aside} ```{r} #| column: screen-inset options(prType='html') des <- describe(support) print(des, 'continuous') print(des, 'categorical') ```

4.1 Quarto Syntax for Figures

4.2 Quarto Built-in Syntax for Enhancing R Output

4.3 Quarto Report Writing Helper Functions
