4  Descriptive Statistics, Distributions, and Graphics

flowchart LR
Types[Types of<br>Measurements] --> Bin[Binary<br><br>Minimum<br>Information] & un[Unordered<br>Categorical<br><br>Low Precision] & ord[Ordered]
ord --> ordd["Ordinal<br>Discrete<br><br>↑Well-Populated<br>Categories→<br>↑Information"] & ordc[Ordinal Continuous]
ordc --> int[Interval Scaled] & ni[Not Interval<br>Scaled]
un & ord --> hist[Histogram]
un --> dot[Dot Chart]
ord --> ecdf[Empirical Cumulative<br>Distribution Function]
ordc --> box[Box Plot<br>Scatterplot]
int --> dens[Nonparametric<br>Density Function]
ordc --> q[Quantiles, IQR]
int --> msd["Mean, SD<br>Gini's mean Δ"]

Relationships Between Y and Continuous X

flowchart LR
mpy[Mean or Proportion<br>of Y vs. X] --> nps[Nonparametric<br>Smoother]
mpy --> ms[Moving<br>General<br>Statistic]
oth["Quantiles of Y<br>Gini's mean Δ<br>SD<br>Kaplan-Meier<br>vs. X"] --> ms
icx[Inherently<br>Categorical X] --> Tab[Table]
mx[Multiple X] --> mod[Model-Based] --> mcharts[Partial<br>Effect Plots<br><br>Effect Differences<br>or Ratios<br><br>Nomograms]

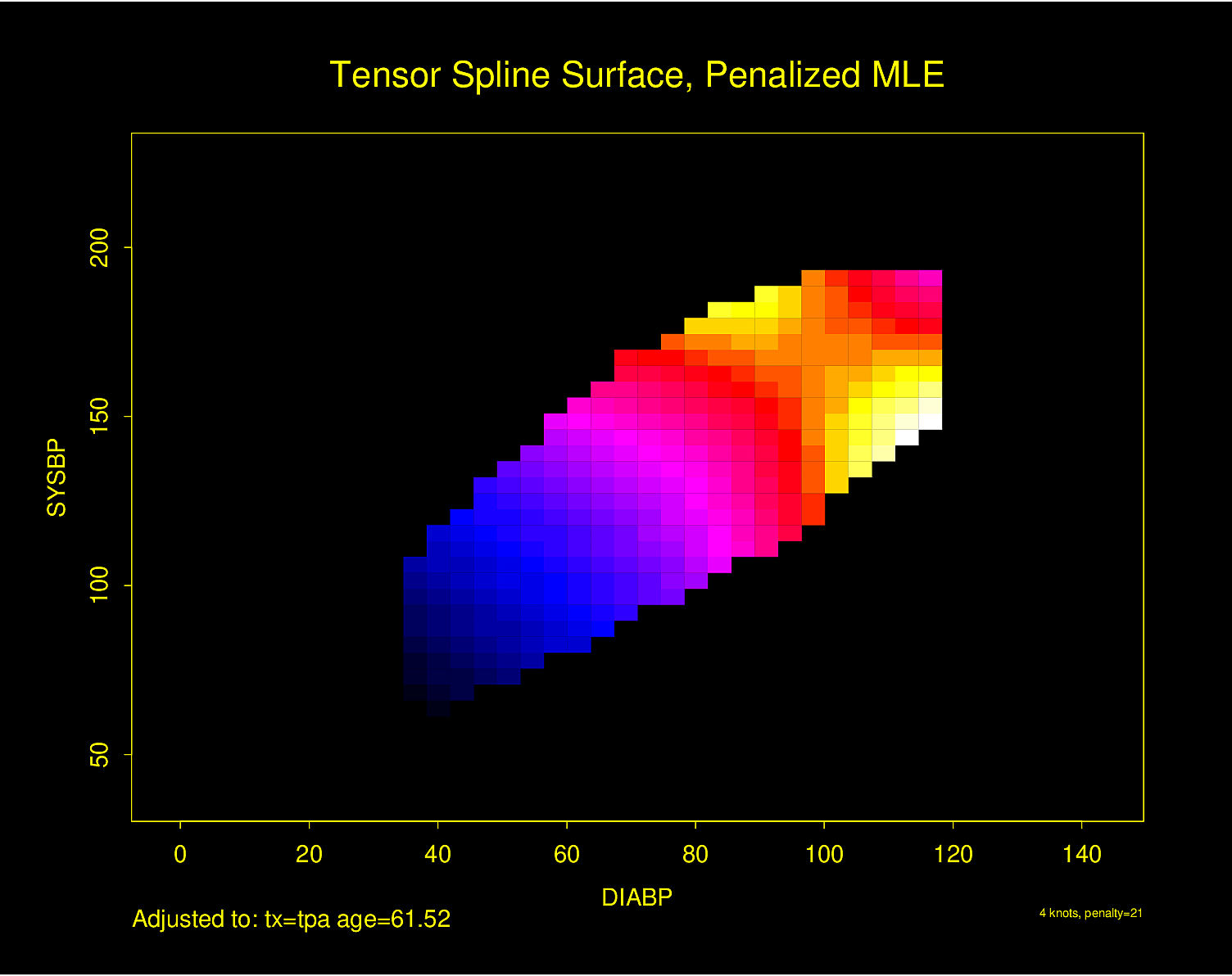

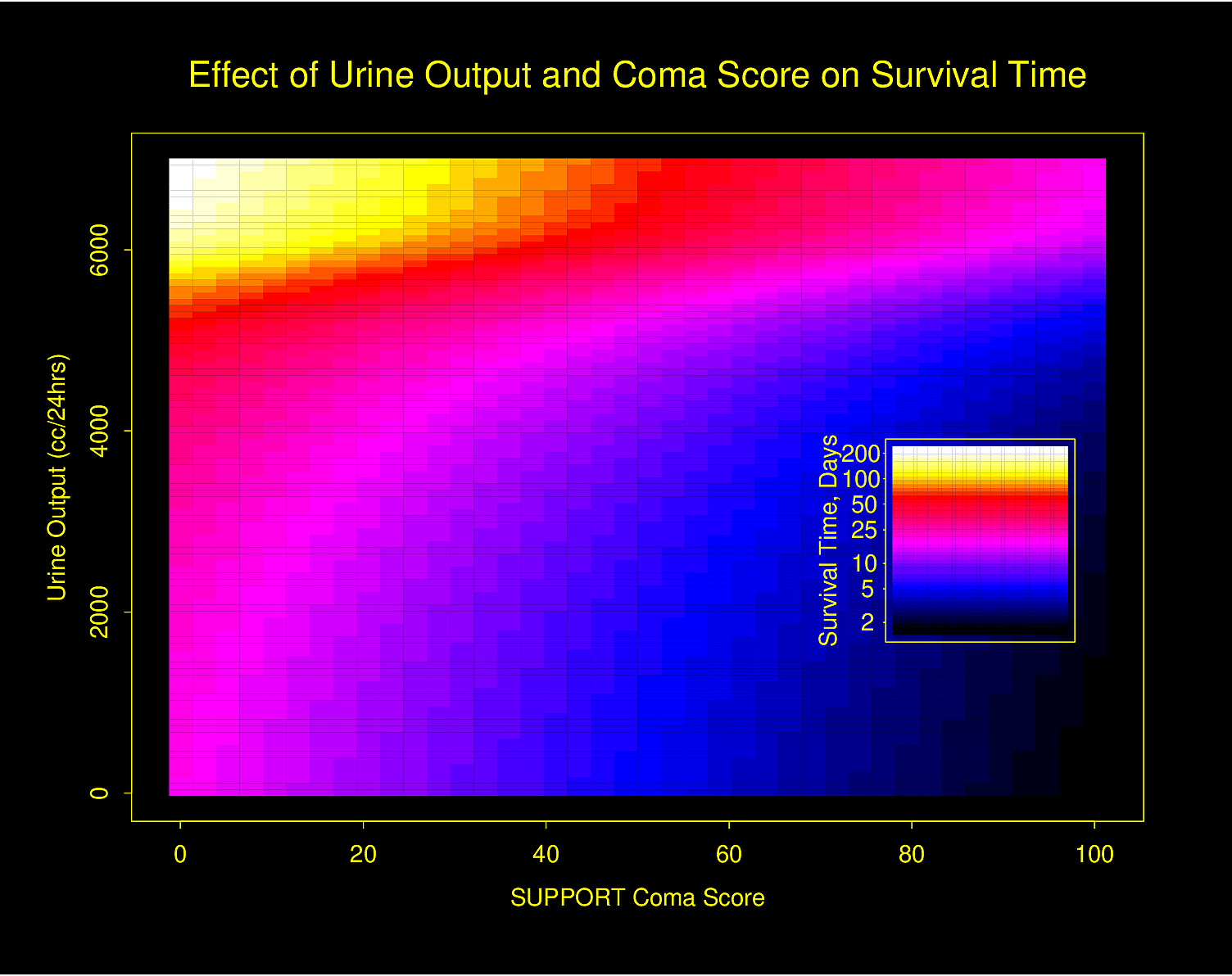

mod --> hm[Color Image<br>Plot to Show<br>Interaction<br>Surface]

4.1 Distributions

ABD 1.4 The distribution of a random variable \(X\) is a profile of its variability and other tendencies. Depending on the type of \(X\), a distribution is characterized by the following.

  • Binary variable: the probability of “yes” or “present” (for a population) or the proportion of same (for a sample).
  • \(k\)-Category categorical (polytomous, multinomial) variable: the probability that a randomly chosen person in the population will be from category \(i, i=1,\ldots,k\). For a sample, use \(k\) proportions or percents.
  • Continuous variable: any of the following 4 sets of statistics
    • probability density: value of \(x\) is on the \(x\)-axis, and the relative likelihood of observing a value “close” to \(x\) is on the \(y\)-axis. For a sample this yields a histogram.
    • cumulative probability distribution: the \(y\)-axis contains the probability of observing \(X\leq x\). This is a function that is always rising or staying flat, never decreasing. For a sample it corresponds to a cumulative histogram1
    • all of the quantiles or percentiles of \(X\)
    • all of the moments of \(X\) (mean, variance, skewness, kurtosis, …)
    • If the distribution is characterized by one of the above four sets of numbers, the other three sets can be derived from this set
  • Ordinal Random Variables
    • Because there many be heavy ties, quantiles may not be good summary statistics
    • The mean may be useful if the spacings have reasonable quantitative meaning
    • The mean is especially useful for summarizing ordinal variables that are counts
    • When the number of categories is small, simple proportions may be helpful
    • With a higher number of categories, exceedance probabilities or the empirical cumulative distribution function are very useful
  • Knowing the distribution we can make intelligent guesses about future observations from the same series, although unless the distribution really consists of a single point there is a lot of uncertainty in predicting an individual new patient’s response. It is less difficult to predict the average response of a group of patients once the distribution is known.
  • At the least, a distribution tells you what proportion of patients you would expect to see whose measurement falls in a given interval.

1 But this empirical cumulative distribution function can be drawn with no grouping of the data, unlike an ordinary histogram.

4.1.1 Continuous Distributions

x <- seq(-3, 35, length=150)
# spar makes base graphics look better
spar <- function(bot=0, top=0, ...)
  par(mar=c(3+bot, 2.75+top, .5, .5), mgp=c(2, .475, 0), ...)
spar(mfrow=c(1,2)); xl <- expression(x)
plot(x, dt(x, 4, 6), type='l', xlab=xl, ylab='')
plot(x, pt(x, 4, 6), type='l', xlab=xl, ylab='')
Figure 4.1: Example probability density (a) and cumulative probability distribution (b) for a positively skewed random variable (skewed to the right)
set.seed(1); x <- rnorm(1000)
hist(x, nclass=40, prob=TRUE, col=gray(.9), xlab=xl, ylab='', main='')
x <- seq(-4, 4, length=150)
lines(x, dnorm(x, 0, 1), col='blue', lwd=2)
Figure 4.2: Example of a continuous distribution that is symmetric: the Gaussian (normal) distribution with mean 0 and variance 1, along with a histogram from a sample of size 1000 from this distribution
x <- c(rnorm(500, mean=0, sd=1), rnorm(500, mean=6, sd=3))
hist(x, nclass=40, prob=TRUE, col=gray(.9), xlab=xl, ylab='', main='')
lines(density(x), col='blue', lwd=2)
abline(v=c(0, 6), col='red')
Figure 4.3: Example of a bimodal distribution from sampling from a mixture of normal distributions with different means and variances and estimating the underlying density function. Vertical red lines indicate true population means of the two component populations. Such a distribution can occur naturally or by failing to condition on a binary characteristic such as sex.

4.1.2 Ordinal Variables

  • Continuous ratio-scaled variables are ordinal
  • Not all ordinal variables are continuous or ratio-scaled
  • Best to analyze ordinal response variables using nonparametric tests or ordinal regression
  • Heavy ties may be present
  • Often better to treat count data as ordinal rather than to assume a distribution such as Poisson or negative binomial that is designed for counts
    • Poisson or negative binomial do not handle extreme clumping at zero
  • Example ordinal variables are below
x <- 0:14
y <- c(.8, .04, .03, .02, rep(.01, 11))
plot(x, y, xlab=xl, ylab='', type='n')
segments(x, 0, x, y)
Figure 4.4: Distribution of number of days in the hospital in the year following diagnosis
x <- 1:10
y <- c(.1, .13, .18, .19, 0, 0, .14, .12, .08, .06)
plot(x, y, xlab=xl, ylab='', type='n')
segments(x, 0, x, y)
Figure 4.5: Distribution of a functional status score that does not have points in the middle

The getHdata function in the Hmisc package Harrell (2020a) finds, downloads, and load()s datasets from hbiostat.org/data.

getHdata(nhgh)   # NHANES dataset    Fig. (* @fig-descript-ordc*):
scr <- pmin(nhgh$SCr, 5)   # truncate at 5 for illustration
scr[scr == 5 | runif(nrow(nhgh)) < .05] <- 5  # pretend 1/20 dialyzed
hist(scr, nclass=50, xlab='Serum Creatinine', ylab='Density', prob=TRUE, main='')
Figure 4.6: Distribution of serum creatinine where the patient requiring dialysis is taken to have the worst renal function. The variable is mostly continuous but is best analyzed as ordinal so that no assumption is made about how to score dialysis except for being worse than all non-dialysis patients. Data taken from NHANES where no patients were actually dialyzed.

4.2 Descriptive Statistics


4.2.1 Categorical Variables

  • Proportions of observations in each categoryThe mean of a binary variable coded 1/0 is the proportion of ones.
  • For variables representing counts (e.g., number of comorbidities), the mean is a good summary measure (but not the median)
  • Modal (most frequent) category

4.2.2 Continuous Variables

Denote the sample values as \(x_{1}, x_{2}, \ldots, x_{n}\)

Measures of Location

“Center” of a sample

  • Mean: arithmetic average
    \(\bar{x} = \frac{1}{n}\sum_{i=1}^{n}x_{i}\)
    Population mean \(\mu\) is the long-run average (let \(n \rightarrow \infty\) in computing \(\bar{x}\))
    • center of mass of the data (balancing point)
    • highly influenced by extreme values even if they are highly atypical
  • Median: middle sorted value, i.e., value such that \(\frac{1}{2}\) of the values are below it and above it
    • always descriptive
    • unaffected by extreme values
    • not a good measure of central tendency when there are heavy ties in the data
    • if there are heavy ties and the distribution is limited or well-behaved, the mean often performs better than the median (e.g., mean number of diseased fingers)
  • Geometric mean: hard to interpret and affected by low outliers; better to use median


Quantiles are general statistics that can be used to describe central tendency, spread, symmetry, heavy tailedness, and other quantities.

  • Sample median: the 0.5 quantile or \(50^{th}\) percentile
  • Quartiles \(Q_{1}, Q_{2}, Q_{3}\): 0.25 0.5 0.75 quantiles or \(25^{th}, 50^{th}, 75^{th}\) percentiles
  • Quintiles: by 0.2
  • In general the \(p\)th sample quantile \(x_{p}\) is the value such that a fraction \(p\) of the observations fall below that value
  • \(p^{th}\) population quantile: value \(x\) such that the probability that \(X \leq x\) is \(p\)

Spread or Variability

  • Interquartile range: \(Q_{1}\) to \(Q_{3}\)
    Interval containing \(\frac{1}{2}\) of the subjects
    Meaningful for any continuous distribution
  • Other quantile intervals
  • Variance (for symmetric distributions): averaged squared difference between a randomly chosen observation and the mean of all observations
    \(s^{2} = \frac{1}{n-1} \sum_{i=1}^{n} (x_{i} - \bar{x})^2\)
    The \(-1\) is there to increase our estimate to compensate for our estimating the center of mass from the data instead of knowing the population mean.2
  • Standard deviation: \(s\)\(\sqrt{}\) of variance
    • \(\sqrt{}\) of average squared difference of an observation from the mean
    • can be defined in terms of proportion of sample population within \(\pm\) 1 SD of the mean if the population is normal
  • SD and variance are not useful for very asymmetric data, e.g. “the mean hospital cost was $10000 \(\pm\) $15000”
  • Gini’s mean difference: mean absolute difference over all possible pairs of observations. This is highly interpretable. robust, and useful for all interval-scaled data, and is even highly precise if the data are normal3.
  • range: not recommended because range \(\uparrow\) as \(n\uparrow\) and is dominated by a single outlier
  • coefficient of variation: not recommended (depends too much on how close the mean is to zero) Example of Gini’s mean difference for describing patient-to-patient variability of systolic blood pressure: If Gini’s mean difference is 7mmHg, this means that the average disagreement (absolute difference) between any two patients is 7mmHg.

2 \(\bar{x}\) is the value of \(\mu\) such that the sum of squared values about \(\mu\) is a minimum.

3 Gini’s mean difference is labeled Gmd in the output of the R Hmisc describe function, and may be computed separately using the Hmisc GiniMd function

4.3 Graphics

ABD 2,3.4

Cleveland (1994) and Cleveland (1984) are the best sources of how-to information on making scientific graphs. Much information may be found at hbiostat.org/R/hreport especially these notes: hbiostat.org/doc/graphscourse.pdf. John Rauser has an exceptional video about principles of good graphics. See datamethods.org/t/journal-graphics for graphical methods for journal articles.

Murrell (2013) has an excellent summary of recommendations:

  • Display data values using position or length.
  • Use horizontal lengths in preference to vertical lengths.
  • Watch your data–ink ratio.
  • Think very carefully before using color to represent data values.
  • Do not use areas to represent data values.
  • Please do not use angles or slopes to represent data values. Please, please do not use volumes to represent data values.

On the fifth point above, avoid the use of bars when representing a single number. Bar widths contain no information and get in the way of important information. This is addressed below.

R has superior graphics implemented in multiple models, including

  • Base graphics such as plot(), hist(), lines(), points() which give the user maximum control and are best used when not stratifying by additional variables other than the ones being summarized
  • The lattice package which is fast but not quite as good as ggplot2 when one needs to vary more than one of color, symbol, size, or line type due to having more than one categorizing variable. ggplot2 is now largely used in place of lattice.
  • The ggplot2 package which is very flexible and has the nicest defaults especially for constructing keys (legends/guides)
  • For semi-interactive graphics inserted into html reports, the R plotly package, which uses the plotly system (which uses the Javascript D3 library) is extremely powerful. See plot.ly/r/getting-started.
  • Fully interactive graphics can be built using RShiny but this requires a server to be running while the graph is viewed.

For ggplot2, www.cookbook-r.com/Graphs contains a nice cookbook. See also learnr.wordpress.com. To get excellent documentation with examples for any ggplot2 function, google ggplot2 _functionname_. ggplot2 graphs can be converted into plotly graphics using the ggplotly function. But you will have more control using R plotly directly.

The older non-interactive graphics models which are useful for producing printed and pdf output are starting to be superseded with interactive graphics. One of the biggest advantages of the latter is the ability to present the most important graphic information front-and-center but to allow the user to easily hover the mouse over areas in the graphic to see tabular details.

4.3.1 Graphing Change vs. Raw Data

A common mistake in scientific graphics is to cover up subject variability by normalizing repeated measures for baseline (see Section Section 3.7). Among other problems, this prevents the reader from seeing regression to the mean for subjects starting out at very low or very high values, and from seeing variation in intervention effect as a function of baseline values. It is highly recommended that all the raw data be shown, including those from time zero. When the sample size is not huge, spaghetti plots are most effective for graphing longitudinal data because all points from the same subject over time are connected. An example Davis (2002) pp. 161-163 is below.

require(Hmisc)   # also loads ggplot2
ggplot(cdystonia, aes(x=week, y=twstrs, color=factor(id))) +
       geom_line() + xlab('Week') + ylab('TWSTRS-total score') +
       facet_grid(treat ~ site) +
Figure 4.7: Spaghetti plot showing all the raw data on the response variable for each subject, stratified by dose and study site (1–9). Importantly, week 0 (baseline) measurements are included.

Graphing the raw data is usually essential.

4.3.2 Categorical Variables

  • pie chart
    • high ink:information ratio
    • optical illusions (perceived area or angle depends on orientation vs. horizon)
    • hard to label categories when many in number
  • bar chart
    • high ink:information ratio
    • hard to depict confidence intervals (one sided error bars?)
    • hard to interpret if use subcategories
    • labels hard to read if bars are vertical
  • dot chart
    • leads to accurate perception
    • easy to show all labels; no caption needed
    • allows for multiple levels of categorization (see Figure 4.8 and Figure 4.9)
      • multi-panel display for multiple major categorizations
      • lines of dots arranged vertically within panel
      • categories within a single line of dots
    • easy to show 2-sided error bars
d <- upData(titanic3,
            agec     = cut2(age, c(10, 15, 20, 30)), print=FALSE)
d <- with(d, as.data.frame(table(sex, pclass, agec)))
d <- subset(d, Freq > 0)
ggplot(d, aes(x=Freq, y=agec)) + geom_point() +
  facet_grid(sex ~ pclass) +
  xlab('Frequency') + ylab('Age')
Figure 4.8: Dot chart showing frequencies from cross-classifications of discrete variables for Titanic passengers
Figure 4.9: Dot chart for categorical demographic variables, stratified by treatment and region

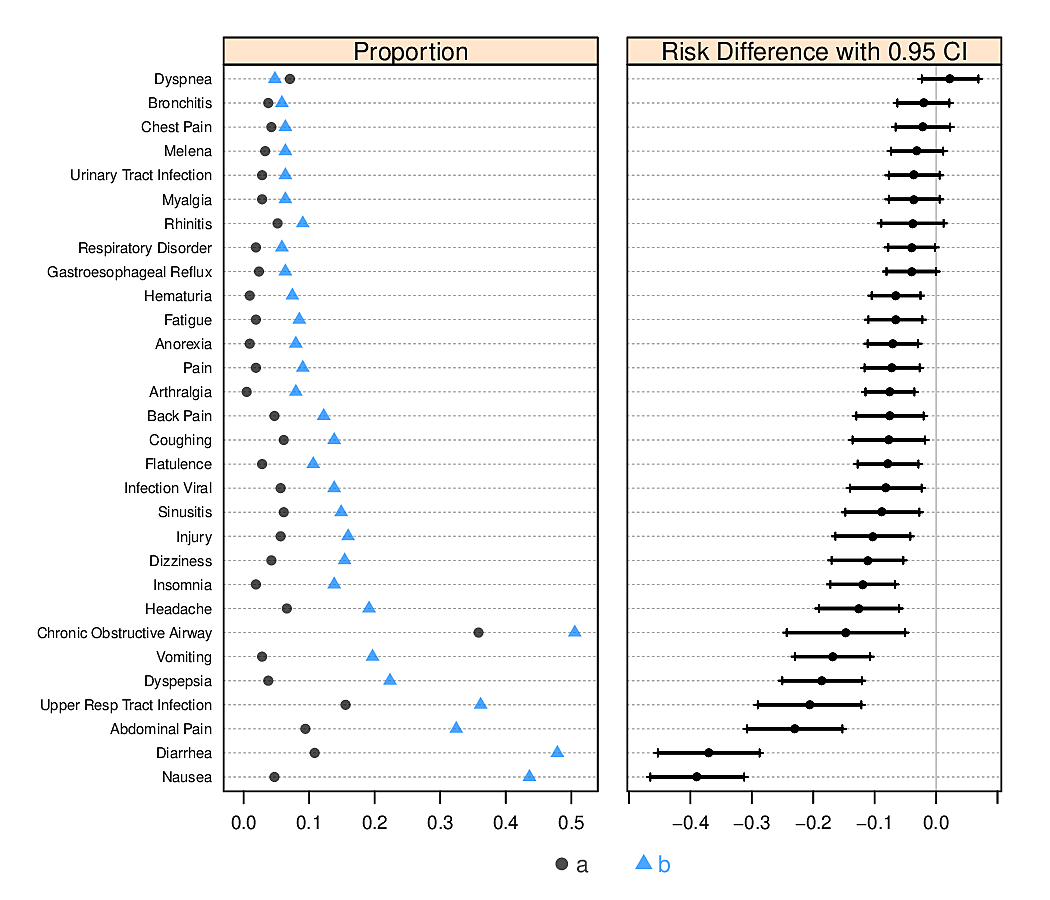

Figure 4.10: Dot chart showing proportion of subjects having adverse events by treatment, sorted by risk difference, produced by the R greport package. See test.Rnw here
  • Avoid chartjunk such as dummy dimensions in bar charts, rotated pie charts, use of solid areas when a line suffices

4.3.3 Continuous Variables

Raw Data

For graphing two continuous variable, scatterplots are often essential. The following example draws a scatterplot on a very large number of observations in a measurement comparison study where the goal is to measure esophageal pH longitudinally and across subjects.

esopH Contents

Data frame:esopH

136127 observations and 2 variables, maximum # NAs:0  
Name Labels Class Storage
orophar Esophageal pH by Oropharyngeal Device numeric double
conv Esophageal pH by Conventional Device numeric double

Figure 4.11: Scatterplot of one measurement mode against another
xl <- label(esopH$conv)
yl <- label(esopH$orophar)
ggplot(esopH, aes(x=conv, y=orophar)) + geom_point(pch='.') +
  xlab(xl) + ylab(yl) +
  geom_abline(intercept = 0, slope = 1)
Figure 4.12: Scatterplot of one measurement mode against another

With large sample sizes there are many collisions of data points and hexagonal binning is an effective substitute for the raw data scatterplot. The number of points represented by one hexagonal symbol is stratified into 15 groups of approximately equal numbers of points.

ggplot(esopH, aes(x=conv, y=orophar)) +
  stat_binhex(aes(fill=Hmisc::cut2(..count.., g=15)),
              bins=40) +
  xlab(xl) + ylab(yl) +
Figure 4.13: Hexagonal binning replacing scatterplot for large \(n\)

Use the Hmisc ggfreqScatter function to bin the points and represent frequencies of overlapping points with color and transparency levels.

with(esopH, ggfreqScatter(conv, orophar, bins=50, g=20) +
              geom_abline(intercept=0, slope=1))
Figure 4.14: Binned points (2500 total bins) with frequency counts shown as color and transparency level


ABD 1.4

  • histogram showing relative frequencies
    • requires arbitrary binning of data
    • not optimal for comparing multiple distributions
  • cumulative distribution function: proportion of values \(\leq x\) vs. \(x\) (Figure 4.15)
    Can read all quantiles directly off graph.
pbcr <- subset(pbc, drug != 'not randomized')
     group=pbcr$drug, col=1:2,
Figure 4.15: Empirical cumulative distributions of baseline variables stratified by treatment in a randomized controlled trial. \(m\) is the number of missing values.
  • Box plots shows quartiles plus the mean. They are a good way to compare many groups as shown below. Note that this approach is very ineffective in handling continuous baseline variables
wst <- cut2(diabetes$waist, g=2)
levels(wst) <- paste('Waist', levels(wst))
bwplot(cut2(age,g=4) ~ glyhb | wst*gender, data=diabetes,
       panel=panel.bpplot, xlab='Glycosylated Hemoglobin', ylab='Age Quartile')
Figure 4.16: Box plots for glycohemoglobin stratified by quartiles of age (vertical), two-tiles of waist circumference (horizontal), and sex (vertical)

Regular box plots have a high ink:information ratio. Using extended box plots we can show more quantiles. The following schematic shows how to interpret them.

Figure 4.17: Schematic for extended box plot

Here are extended box plots stratified by a single factor.

s <- summaryM(crea ~ dzgroup, data=support)
# Note: if the variables on the left side of the formula contained a mixture of
# categorical and continuous variables there would have been two parts to to
# results of plot(s), one named Continuous and one named Categorical
Figure 4.18: Extended plots showing the distribution of serum creatinine stratified by major diagnosis. Asymmetry of distributions can be seen by both disagreement between \(Q_{3}-Q_{2}\) and \(Q_{2}-Q_{1}\) and by disagreement between \(Q_{2}\) and \(\bar{x}\).

Using plotly graphics we can make an interactive extended box plot whose elements are self-explanatory; hover the mouse over graphical elements to see their definitions and data values.

options(grType='plotly')   # set to use interactive graphics output for
                           # certain Hmisc and rms package functions
plot(s)                    # default is grType='base'
Figure 4.19: Interactive extended box plots for serum creatinine stratified by diagnosis

Box plots (extended or not) are inadequate for displaying bimodality. Violin plots show the entire distribution well if the variable being summarized is fairly continuous. Even better are spike histograms, when not also showing longitudinal trends.

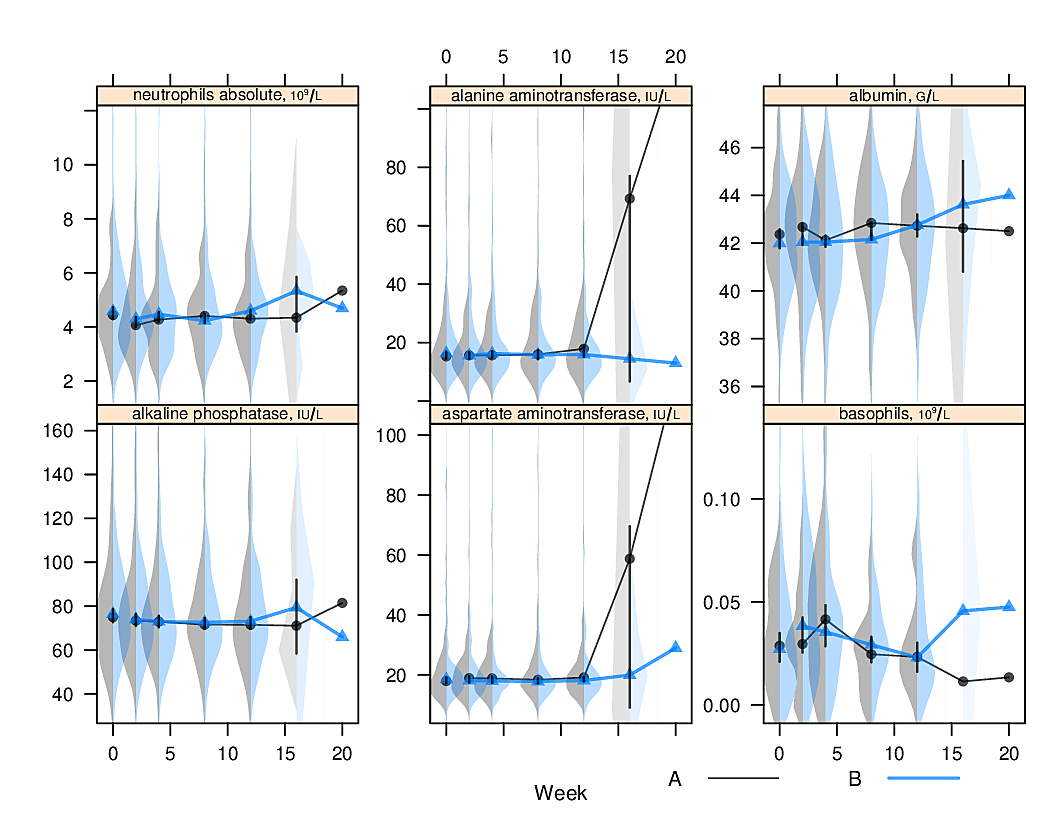

Figure 4.20: One-half violin plots for longitudinal data, stratified by treatment. Density estimates for groups with insufficient sample sizes are faded. Density plots are back-to-back for treatment A and B. Points are treatment medians. When the black vertical line does not touch the two medians, the medians are significantly different at the \(\alpha=0.05\) level. Graphic was produced by the R greport package.


  • When response variable is continuous and descriptor (stratification) variables are categorical, multi-panel dot charts, box plots, multiple cumulative distributions, etc., are useful.
  • Categorization of continuous independent variable X is highly problematic and misleading
  • Two continuous variables: scatterplot
  • Trends when X is continuous
    • nonparametric smoother such as loess for trends in means or proportions
    • more general: moving statistics (generalizations of moving averages)
    • can estimate quantiles, mean, variability of Y vs. X
    • can also allow for censoring, e.g., moving 1y and 2y cumulative incidence using the Kaplan-Meier estimator
    • general R function movStats
  • Moving statistics method
    • does not categorize X into non-overlapping intervals
    • creates small intervals of X, compute the statistic of interest on Y
    • move to the next interval, overlapping significantly with the last window
    • link the Y statistic computed in the X window to the mean X within the interval
    • after getting Y statistics for all overlapping X intervals, smooth these X-Y pairs using the “super-smoother” or loess
    • windows are formed based on interval sample sizes, not based on absolute coordinates; allows for highly skewed X-distributions (window sizes vary, in X units)
  • Example: moving 2-year cumulative incidence of disease
    • first interval is from the lowest X to the 25th lowest X
    • compute Y statistic for those observations: one minus the Kaplan-Meier estimate of 2y event-free probability
    • attach to mean X in the 25 lowest Xs
    • move up 5 observations, forming a new interval from the 6th lowest X to the 30th lowest X
    • as we get away from the outer part of the X distribution the windows will be \(\pm 15\) observations on either side of the target X for which the Y property is being estimated
    • when finished apply a large amount of smoothing to the X-Y pairs

As an example let’s estimate the upper quartile of glycohemoglobin (HbA\(_{\mathrm{1c}}\)) and the variability in HbA\(_{\mathrm{1c}}\), both as a function of age. Our measure of variability will be Gini’s mean difference. Use an NHANES dataset. The raw age distribution is shown in the first panel. Instead of using the default window sample size of \(\pm 15\) observations use 30.

getRs('movStats.r')   # Load function from Github
d <- nhgh[, .(age, gh)]
stats <- function(y)
  list('Moving Q3'   = quantile(y, 3/4),
       'Moving Gmd'  = GiniMd(y),
       N             = length(y))
u <- movStats(gh ~ age, stat=stats, msmooth='both',
              eps=30,  # +/- 30 observation window
              melt=TRUE, data=d, pr='margin')
Window Sample Sizes
N Mean Min Max xinc
6795 60.8 40 61 33
g <- ggplot(u, aes(x=age, y=gh)) + geom_line(aes(color=Type)) +
  facet_wrap(~ Statistic, scale='free_y') +
  xlim(10, 80) + xlab('Age') + ylab(expression(HbA["1c"]))
g <- addggLayers(g, d, value='age', facet=list(Statistic='Gmd'))
addggLayers(g, d, value='age', type='spike', pos='top',
Figure 4.21: Moving upper quartile and Gini’s mean difference of HbA\(_{\mathrm 1c}\) as a function of age for NHANES, with and without smoothing. An extended box plot and spike histogram is included in the first facet (Gmd for Gini’s mean difference) to show the age distribution. The extended box plot is supplemented by 0.01 and 0.99 quantiles (outer dots).

Younger subjects tend to differ from each other in HbA\(_{\mathrm{1c}}\) by 0.5 on the average while typical older subjects differ by almost 1.0. Note the large spike in the histogram at age 80. NHANES truncated ages at 80 as a supposed safeguard against subject re-identification.

Re-draw the last graph but just for the smoothed estimates for \(Q_3\), and include a spike histogram.

u <- u[Type == 'Moving-smoothed' & Statistic == 'Q3',]
g <- ggplot(u, aes(x=age, y=gh)) + geom_line() +
  xlab('Age') + ylab(expression(paste(HbA["1c"]~~~Q[3]))) + ylim(5.4, 6.4)
addggLayers(g, d, value='age', type='spike', pos='bottom')
Figure 4.22: Moving \(Q_3\) as a function of age with a spike histogram depicting the age distribution.

4.3.4 Graphs for Summarizing Results of Studies

  • Dot charts with optional error bars (for confidence limits) can display any summary statistic (proportion, mean, median, mean difference, etc.)
  • It is not well known that the confidence interval for a difference in two means cannot be derived from individual confidence limits.4
    Show individual confidence limits as well as actual CLs for the difference.

4 In addition, it is not necessary for two confidence intervals to be separated for the difference in means to be significantly different from zero.

male   <- smean.cl.boot(glyhb[gender=='male'],   reps=TRUE)
female <- smean.cl.boot(glyhb[gender=='female'], reps=TRUE)
dif <- c(mean=male['Mean']-female['Mean'],
         quantile(attr(male, 'reps')-attr(female,'reps'), c(.025,.975)))
plot(0,0,xlab='Glycated Hemoglobin',ylab='',
     xlim=c(5,6.5),ylim=c(0,4), axes=F)
axis(1, at=seq(5, 6.5, by=0.25))
axis(2, at=c(1,2,3.5), labels=c('Female','Male','Difference'),
     las=1, adj=1, lwd=0)
points(c(male[1],female[1]), 2:1)
segments(female[2], 1, female[3], 1)
segments(male[2], 2,   male[3], 2)
offset <- mean(c(male[1],female[1])) - dif[1]
points(dif[1] + offset, 3.5)
segments(dif[2]+offset, 3.5, dif[3]+offset, 3.5)
at <- c(-.5,-.25,0,.25,.5,.75,1)
axis(3, at=at+offset, label=format(at))
segments(offset, 3, offset, 4.25, col=gray(.85))
abline(h=c(2 + 3.5)/2, col=gray(.85))
Figure 4.23: Means and nonparametric bootstrap 0.95 confidence limits for HbA\(_{\mathrm 1c}\) for males and females, and confidence limits for males - females. Lower and upper \(x\)-axis scales have same spacings but different centers. Confidence intervals for differences are generally wider than those for the individual constituent variables.
  • For showing relationship between two continuous variables, a trend line or regression model fit, with confidence bands

Bar Plots with Error Bars

  • “Dynamite” Plots
  • Height of bar indicates mean, lines represent standard error
  • High ink:information ratio
  • Hide the raw data, assume symmetric confidence intervals
  • Replace with
    • Dot plot (smaller sample sizes)
    • Box plot (larger sample size)
getHdata(FEV); set.seed(13)
FEV <- subset(FEV, runif(nrow(FEV)) < 1/8)   # 1/8 sample
s <- with(FEV, summarize(fev, llist(sex, smoke), smean.cl.normal))
ggplot(s, aes(x=smoke, y=fev, fill=sex)) +
    geom_bar(position=position_dodge(), stat="identity") +
    geom_errorbar(aes(ymin=Lower, ymax=Upper),
Figure 4.24: Bar plot with error bars—“dynamite plot”

See biostat.app.vumc.org/DynamitePlots for a list of the many problems caused by dynamite plots, plus some solutions.

Instead of the limited information shown in the bar chart, show the raw data along with box plots. Modify default box plots to replace whiskers with the interval between 0.1 and 0.9 quantiles.

stats <- function(x) {
  z <- quantile(x, probs=c(.1, .25, .5, .75, .9))
  names(z) <- c('ymin', 'lower', 'middle', 'upper', 'ymax')
  if(length(x) < 10) z[c(1,5)] <- NA
ggplot(FEV, aes(x=sex, y=fev)) +
  stat_summary(fun.data=stats, geom='boxplot', aes(width=.75), shape=5,
               position='dodge', col='lightblue') +
  geom_dotplot(binaxis='y', stackdir='center', position='dodge', alpha=.4) +
  stat_summary(fun.y=mean, geom='point', shape=5, size=4, color='blue') +
  facet_grid(~ smoke) +
  xlab('') + ylab(expression(FEV[1])) + coord_flip()
Figure 4.25: Jittered raw data and box plots. Middle vertical lines indicate medians and diamonds indicate means. Horizontal lines indicate 0.1 to 0.9 quantiles when \(n\geq 10\). The ink:information ratio for this plot is far better than a dynamite plot.

Use a violin plot to show the distribution density estimate (and its mirror image) instead of a box plot.

ggplot(FEV, aes(x=sex, y=fev)) +
  geom_violin(width=.6, col='lightblue') +
  geom_dotplot(binaxis='y', stackdir='center', position='dodge', alpha=.4) +
  stat_summary(fun.y=median, geom='point', color='blue', shape='+', size=12) +
  facet_grid(~ smoke) +
  xlab('') + ylab(expression(FEV[1])) + coord_flip()
Figure 4.26: Jittered raw data and violin plots with median indicated by blue +

Semi-Interactive Graphics Examples

These examples are all found in hbiostat.org/talks/rmedicine19.html.

Other examples: descriptions of BBR course participants: hbiostat.org/bbr/registrants.html.

4.3.5 Graphs for Describing Statistical Model Fits

Several types of graphics are useful. All but the first are implemented in the R rms package Harrell (2020b).

  • Single-axis nomograms: Used to transform values (akin to using a slide rule to compute square roots) or to get predicted values when the model contains a single predictor
  • Partial effect plots: Show the effect on \(Y\) of varying one predictor at a time, holding the other predictors to medians or modes, and include confidence bands. This is the best approach for showing shapes of effects of continuous predictors.
  • Effect charts: Show the difference in means, odds ratio, hazard ratio, fold change, etc., varying each predictor and holding others to medians or modes5. For continuous variables that do not operate linearly, this kind of display is not very satisfactory because of its strong dependence on the settings over which the predictor is set. By default inter-quartile-range effects are used.
  • Nomograms: Shows the entire model if the number of interactions is limited. Nomograms show strengths and shapes of relationships, are very effective for continuous predictors, and allow computation of predicted values (although without confidence limits).

5 It does not matter what the other variables are set to if they do not interact with the variable being varied.

For an example of a single-axis nomogram, consider a binary logistic model of a single continuous predictor variable X from which we obtain the predicted probability of the event of interest. The intercept \(\alpha\) and slope \(\beta\) were computed to match a published model. These would ordinarily be computed from coef(f) where f is the fit object.

beta  <- (qlogis(.999)-qlogis(.001))/177
alpha <- qlogis(.001)-23*beta
par(usr=c(-10,230, -.04, 1.04))
axis(1, at=seq(0,220,by=20))
axis(1, at=seq(0,220,by=5), tcl=-.25, labels=FALSE)
p <- c(.001,.01,.05,seq(.1,.9,by=.1),.95,.99,.999)
s <- (qlogis(p)-alpha) / beta
axis(1, at=s, label=as.character(p), col.ticks=gray(.7),
     tcl=.5, mgp=c(-3,-1.7,0))
p <- c(seq(.01,.2,by=.01), seq(.8,99,by=.01))
s <- (qlogis(p)-alpha) / beta
axis(1, at=s, labels=FALSE, col.ticks=gray(.7), tcl=.25)
title(xlab='Estimated Risk', mgp=c(-3,-1.7,0))
Figure 4.27: Single-axis nomogram

Here are examples of graphical presentations of a fitted multivariable model using NHANES data to predict glycohemoglobin from age, sex, race/ethnicity, and BMI.Ordinary regression is not an adequate fit for glycohemoglobin; an excellent fit comes from ordinal regression. BMI is not an adequate summary of body size. An ordinary regression model in the \(-1.75\) power of glycohemoglobin resulted in approximately normal residuals and is used for illustration. The transformation is subtracted from a constant just so that positive regression coefficients indicate that increasing a predictor increases glycohemoglobin. The inverse transformation raises predicted values to the \(\frac{-1}{1.75}\) power after accounting for the subtraction, and is used to estimate the median glycohemoglobin on the original scale. If residuals have a normal distribution after transforming the dependent variable, the estimated mean and median transformed values are the same. Inverse transforming the estimates provides an estimate of the median on the original scale (but not the mean).. Restricted cubic spline functions with 4 default knots are used to allow age and BMI to act smoothly but nonlinearly. Partial effects plots are in Figure 4.28

getHdata(nhgh)   # NHANES data
dd <- datadist(nhgh); options(datadist='dd')
g        <- function(x) 0.09 - x ^ - (1 / 1.75)
ginverse <- function(y) (0.09 - y) ^ -1.75
f <- ols(g(gh) ~ rcs(age, 4) + re + sex + rcs(bmi, 4), data=nhgh)


Linear Regression Model

ols(formula = g(gh) ~ rcs(age, 4) + re + sex + rcs(bmi, 4), data = nhgh)
Model Likelihood
Ratio Test
Obs 6795 LR χ2 1861.16 R2 0.240
σ 0.0235 d.f. 11 R2adj 0.238
d.f. 6783 Pr(>χ2) 0.0000 g 0.015


      Min        1Q    Median        3Q       Max
-0.097361 -0.012083 -0.002201  0.008237  0.168892
β S.E. t Pr(>|t|)
Intercept  -0.2884  0.0048 -60.45 <0.0001
age   0.0002  0.0001 3.34 0.0008
age'   0.0010  0.0001 7.63 <0.0001
age''  -0.0040  0.0005 -8.33 <0.0001
re=Other Hispanic  -0.0013  0.0011 -1.20 0.2318
re=Non-Hispanic White  -0.0082  0.0008 -10.55 <0.0001
re=Non-Hispanic Black  -0.0013  0.0009 -1.34 0.1797
re=Other Race Including Multi-Racial   0.0006  0.0014 0.47 0.6411
sex=female  -0.0022  0.0006 -3.90 <0.0001
bmi  -0.0006  0.0002 -2.54 0.0111
bmi'   0.0059  0.0009 6.44 <0.0001
bmi''  -0.0161  0.0025 -6.40 <0.0001
print(anova(f), dec.ss=3, dec.ms=3)
Analysis of Variance for g(gh)
d.f. Partial SS MS F P
age 3 0.732 0.244 441.36 <0.0001
Nonlinear 2 0.040 0.020 35.83 <0.0001
re 4 0.096 0.024 43.22 <0.0001
sex 1 0.008 0.008 15.17 <0.0001
bmi 3 0.184 0.061 110.79 <0.0001
Nonlinear 2 0.023 0.011 20.75 <0.0001
TOTAL NONLINEAR 4 0.068 0.017 30.94 <0.0001
REGRESSION 11 1.181 0.107 194.29 <0.0001
ERROR 6783 3.749 0.001

# Show partial effects of all variables in the model, on the original scale
ggplot(Predict(f, fun=ginverse),
       ylab=expression(paste('Predicted Median ', HbA['1c'])))
Figure 4.28: Partial effects in NHANES HbA\(_{1c}\) model

An effect chart is in Figure 4.29 and a nomogram is in Figure 4.30. See stats.stackexchange.com/questions/155430/clarifications-regarding-reading-a-nomogram for excellent examples showing how to read such nomograms.

Figure 4.29: Partial effects chart on the transformed scale. For age and BMI, effects are inter-quartile-range effects. 0.9, 0.95, and 0.99 confidence limits are shown.
plot(nomogram(f, fun=ginverse, funlabel='Median HbA1c'))
Figure 4.30: Nomogram for predicting median HbA\(_{1c}\). To use the nomogram, use the top Points scale to convert each predictor value to a common scale. Add the points and read this number on the Total Points scale, then read down to the median.

Graphing Effect of Two Continuous Variables on \(Y\)

The following examples show the estimated combined effects of two continuous predictors on outcome. The two models included interaction terms, the second example using penalized maximum likelihood estimation with a tensor spline in diastolic \(\times\) systolic blood pressure.

Figure 4.31: Estimated median survival time for critically ill adults
Figure 4.32: Logistic regression estimate of probability of a hemorrhagic stroke for patients in the GUSTO-I trial given \(t\)-PA, using a tensor spline of two restricted cubic splines and penalization (shrinkage). Dark (cold color) regions are low risk, and bright (hot) regions are higher risk.

Figure 4.32 is particularly interesting because the literature had suggested (based on approximately 24 strokes) that pulse pressure was the main cause of hemorrhagic stroke whereas this flexible modeling approach (based on approximately 230 strokes) suggests that mean arterial blood pressure (roughly a \(45^\circ\) line) is what is most important over a broad range of blood pressures. At the far right one can see that pulse pressure (axis perpendicular to \(45^\circ\) line) may have an impact although a non-monotonic one.

4.4 Tables

What are tables for?

  • Lookup of details
  • Not for seeing trends
  • For displaying a summary of a variable stratified by a truly categorical variable
  • Not for summarizing how a variable changes across levels of a continuous independent variable

Since tables are for lookup, they can be complex. With modern media, a better way to think of a table is as a pop-up when viewing elements of a graph.

What to display in a table for different types of response variables:

  • Binary variables: Show proportions first; they should be featured because they are normalized for sample size
    • Don’t need to show both proportions (e.g., only show proportion of females)
    • Proportions are better than percents because of reduced confusion when speaking of percent difference (is it relative or absolute?) and because percentages such as 0.3% are often mistaken for 30% or 3%.
  • Make logical choices for independent and dependent variables.
    E.g., less useful to show proportion of males for patients who lived vs. those who died than to show proportion of deaths stratified by sex.
  • Continuous response variables
    • to summarize distributions of raw data: 3 quartiles
      recommended format: 35 50 67 or 35/50/67
    • summary statistics: mean or median and confidence limits (without assuming normality of data if possible)
  • Continuous independent (baseline) variables
    • Don’t use tables because these requires arbitrary binning (categorization)
    • Use graphs to show smooth relationships
  • Show number of missing values
  • Add denominators when feasible
  • Confidence intervals: in a comparative study, show confidence intervals for differences, not confidence intervals for individual group summaries
d <- stressEcho
d[, hxofMI := factor(hxofMI, 0 : 1, c('No history of MI', 'History of MI'))]
s <- summaryM(bhr + basebp + basedp + pkhr + maxhr + gender~ hxofMI, data=d)
print(s, exclude1=TRUE, npct='both', digits=3, middle.bold=TRUE)
Descriptive Statistics (N=558).
No history of MI
History of MI
Basal heart rate
65 74 85 63 72 84
Basal blood pressure
120 134 150 120 130 150
Basal Double Product bhr*basebp
8514 9874 11766 8026 9548 11297
Peak heart rate
107 123 136 104 120 132
Maximum heart rate
107 122 134 102 118 130
gender : female 0.68 273404 0.42 65154
a b c represent the lower quartile a, the median b, and the upper quartile c for continuous variables.

See also hbiostat.org/talks/rmedicine19.html#18.
